100S-D300EN22C

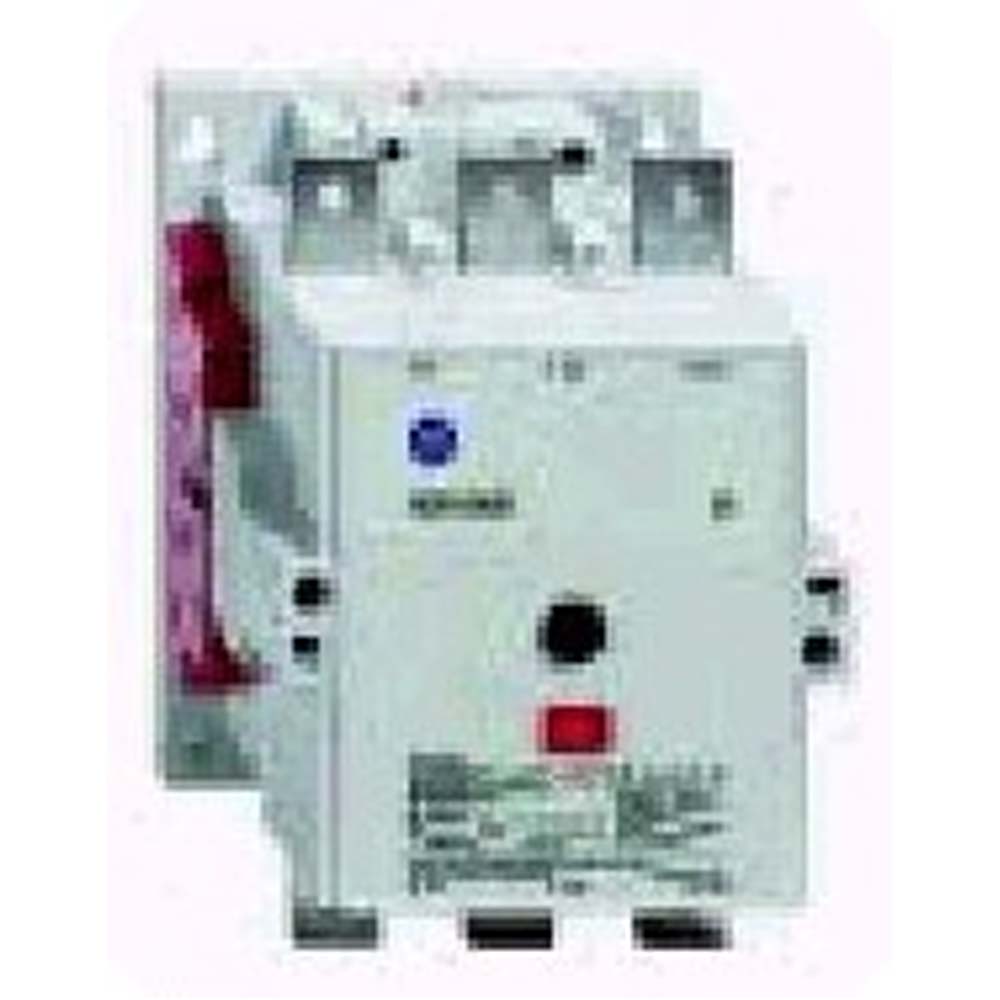

300 A MCS D Safety Contactor

Name: 100S-D300EN22C
Brand: Rockwell Automation

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of March 31, 2019, the 300 A MCS D Safety Contactor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: March 31, 2019 Replacement Category: Engineering Replacement Replacement Product: 100S-E305KN12C [https://www.rockwellautomation.com/en-us/products/details.100S-E305KN12C.html]

Product at a glance

Replacement Available

Lifecycle status: Discontinued

Discontinued Date: March 31, 2019 Replacement Category: Engineering Replacement Replacement Product: 100S-E305KN12C [https://www.rockwellautomation.com/en-us/products/details.100S-E305KN12C.html]

Product at a glance

Replacement Available

Maximum Ampere Rating	300 A

Voltage type for actuating	AC
Rated control supply voltage at AC 50 Hz	380 V
Rated control supply voltage at AC 60 Hz	380 V
Type of electrical connection of main circuit	Screw connection
Rated impulse withstand voltage (Uimp)	12 kV
Current (Ie), max	300 A
Current rating	115 A
Main current circuit resistance	0.18 mΩ
Rated filament current	300A @ 230/240V, AC-5b
Rated isolation voltage (Ui)	600V per UL, CSA
Auxiliary contacts	IP20 IEC 60529/DIN 40050
Rated power (enclosed)	300Hp @ 575V, 3-phase per UL/CSA
Rated operational current for contactor	192A @ 575V, elevator duty (UL/CSA)
Rated power for contactor	75Hp @ 230V, elevator duty (UL/CSA)
Auxiliary contact configuration	2 NO, 2 NC auxiliary
Rating of single capacitor	546 kVAR @ 1000V @ 50Hz, AC-6b, 40 °C
Rating of group capacitors	361 kVAR @ 1000V @ 50Hz, AC-6b, 60 °C
General purpose current (enclosed)	Load carrying capacity: 340 A per UL/CSA
Operating time, closing delay	35...110 ms @ DC
Power dissipation	48.6 W @ 400V, AC-3, Ie
Short time withstand (Icw)	2840A @ 10s, 60 °C
Operating time, opening delay	25...50 ms @ DC
Coil consumption, hold-in	6 W @ DC control
Coil consumption, pick-up	380VA @ 50 Hz, 60 Hz, 50/60 Hz
Total power dissipation	DC control: 54.6 W @ 400V, AC-3, Ie
Operating limits, dropout	(0.3...0.5) x Us @ DC control
Switching of lamps	Gas discharge lA, open: 405A @ 40°C, AC-5a
Insulation class of the coil	Class B per VDE 0660, table 22
Rating for switching AC motors	90 kW @ 230V @ 50Hz, 3-phase (AC-2, AC-3)
Operating limits, pick-up	(0.85...1.1) x Us @ DC control
BS88 fuses current rating	Type2 (IEC 60947-4-1): 450A @ 415V, 65 kA available fault current
UL class L fuses rating	700A @ 600V, 18 kA available fault current per UL listed combination
DIN fuses (gG, gL) current rating	Type2 (IEC 60947-4-1): 500A @ 690V, 50 kA available fault current
Coil voltage	380-415V 50/60 Hz/380-500V 50/60 Hz electronic coil with electronic interface
Rated operational current (Ie)	85A @ 1000V, AC-4 (approximately 200000 ops)
UL class J and CSA HRCI-J fuses rating	Type2 (IEC60947-4-1): 500A @ 100kA available fault current per UL verified combination
UL inverse-time circuit breaker	400A @ 600V, 30 kA available fault current per UL listed combination
Switching of power transformers	Apparent power: 93.5 kVA @ 240V @ 60Hz
Rated operational power (Pe)	97 kW @ 230V, AC-4 (50 Hz), ambient temperature 60 °C
Switching of DC loads	3-pole in series: 4.1A @ 440V (shunt-wound motors, starting, reverse current braking, reversing, stepping DC-3 at 60 °C)
Optional accessories	Side-mount auxiliary contacts, surge suppressors, IP20 terminal blocks, terminal shields, terminal covers, connecting components, terminal lugs, mechanical/electrical interlocks
Features	Mirror contact performance on auxiliary contacts, which are required in ftdback circuit for modern safety applications, The NC auxiliary contacts will not change state when a power contact welds, SUVA third-party certification, AC and DC operating coils,
Contacts	3 main poles with N.C. mechanically linked ftdback contacts
Electronic-EI coil type	True

Width	155 mm
Height	221.75 mm
Depth	180.5 mm
Single contactor cover	IP10 IEC 60529/DIN 40050
Contactor with frame terminal block	IP20 IEC 60529/DIN 40050

Screw terminals	Thru-hole
Vibration resistance	IEC 60068-2-6
Shock resistance	IEC 60068-2-27
Main contact terminal conductor cross section	6 mm @ maximum s
Frame terminal block conductor cross section	6...20 mm @ s top
Lifespan	Mechanical DC control: 10000000 ops
Switching frequency, max	70 ops/h, AC-4 (approximately 200000 ops)
Recommended torque	43 Nm
Weight	Non-reverse: 7.5 kg @ DC
Conductor cross section	Top opening: 25 to 240 mm²
Protection class	IP00 IEC 60529/DIN 40050

Altitude of installation site, max	2000 m (NN) per IEC 60947-4
Protection against accidental contact	Finger and back-of-hand proof per VDE 0106, part 100
Ambient temperature	Storage: -40...80 °C

Installation Instructions	Publication
100s-in009_-en-e	100S-IN009

Technical Data	Publication
100-td013_-en-p	100-TD013

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Technical Specifications

Maximum Ampere Rating	300 A

Voltage type for actuating	AC
Rated control supply voltage at AC 50 Hz	380 V
Rated control supply voltage at AC 60 Hz	380 V
Type of electrical connection of main circuit	Screw connection
Rated impulse withstand voltage (Uimp)	12 kV
Current (Ie), max	300 A
Current rating	115 A
Main current circuit resistance	0.18 mΩ
Rated filament current	300A @ 230/240V, AC-5b
Rated isolation voltage (Ui)	600V per UL, CSA
Auxiliary contacts	IP20 IEC 60529/DIN 40050
Rated power (enclosed)	300Hp @ 575V, 3-phase per UL/CSA
Rated operational current for contactor	192A @ 575V, elevator duty (UL/CSA)
Rated power for contactor	75Hp @ 230V, elevator duty (UL/CSA)
Auxiliary contact configuration	2 NO, 2 NC auxiliary
Rating of single capacitor	546 kVAR @ 1000V @ 50Hz, AC-6b, 40 °C
Rating of group capacitors	361 kVAR @ 1000V @ 50Hz, AC-6b, 60 °C
General purpose current (enclosed)	Load carrying capacity: 340 A per UL/CSA
Operating time, closing delay	35...110 ms @ DC
Power dissipation	48.6 W @ 400V, AC-3, Ie
Short time withstand (Icw)	2840A @ 10s, 60 °C
Operating time, opening delay	25...50 ms @ DC
Coil consumption, hold-in	6 W @ DC control
Coil consumption, pick-up	380VA @ 50 Hz, 60 Hz, 50/60 Hz
Total power dissipation	DC control: 54.6 W @ 400V, AC-3, Ie
Operating limits, dropout	(0.3...0.5) x Us @ DC control
Switching of lamps	Gas discharge lA, open: 405A @ 40°C, AC-5a
Insulation class of the coil	Class B per VDE 0660, table 22
Rating for switching AC motors	90 kW @ 230V @ 50Hz, 3-phase (AC-2, AC-3)
Operating limits, pick-up	(0.85...1.1) x Us @ DC control
BS88 fuses current rating	Type2 (IEC 60947-4-1): 450A @ 415V, 65 kA available fault current
UL class L fuses rating	700A @ 600V, 18 kA available fault current per UL listed combination
DIN fuses (gG, gL) current rating	Type2 (IEC 60947-4-1): 500A @ 690V, 50 kA available fault current
Coil voltage	380-415V 50/60 Hz/380-500V 50/60 Hz electronic coil with electronic interface
Rated operational current (Ie)	85A @ 1000V, AC-4 (approximately 200000 ops)
UL class J and CSA HRCI-J fuses rating	Type2 (IEC60947-4-1): 500A @ 100kA available fault current per UL verified combination
UL inverse-time circuit breaker	400A @ 600V, 30 kA available fault current per UL listed combination
Switching of power transformers	Apparent power: 93.5 kVA @ 240V @ 60Hz
Rated operational power (Pe)	97 kW @ 230V, AC-4 (50 Hz), ambient temperature 60 °C
Switching of DC loads	3-pole in series: 4.1A @ 440V (shunt-wound motors, starting, reverse current braking, reversing, stepping DC-3 at 60 °C)
Optional accessories	Side-mount auxiliary contacts, surge suppressors, IP20 terminal blocks, terminal shields, terminal covers, connecting components, terminal lugs, mechanical/electrical interlocks
Features	Mirror contact performance on auxiliary contacts, which are required in ftdback circuit for modern safety applications, The NC auxiliary contacts will not change state when a power contact welds, SUVA third-party certification, AC and DC operating coils,
Contacts	3 main poles with N.C. mechanically linked ftdback contacts
Electronic-EI coil type	True

Width	155 mm
Height	221.75 mm
Depth	180.5 mm
Single contactor cover	IP10 IEC 60529/DIN 40050
Contactor with frame terminal block	IP20 IEC 60529/DIN 40050

Screw terminals	Thru-hole
Vibration resistance	IEC 60068-2-6
Shock resistance	IEC 60068-2-27
Main contact terminal conductor cross section	6 mm @ maximum s
Frame terminal block conductor cross section	6...20 mm @ s top
Lifespan	Mechanical DC control: 10000000 ops
Switching frequency, max	70 ops/h, AC-4 (approximately 200000 ops)
Recommended torque	43 Nm
Weight	Non-reverse: 7.5 kg @ DC
Conductor cross section	Top opening: 25 to 240 mm²
Protection class	IP00 IEC 60529/DIN 40050

Altitude of installation site, max	2000 m (NN) per IEC 60947-4
Protection against accidental contact	Finger and back-of-hand proof per VDE 0106, part 100
Ambient temperature	Storage: -40...80 °C

Documents

100s-in009_-en-e Installation Instructions
100S-IN009

100-td013_-en-p Technical Data
100-TD013

Installation Instructions	Publication
100s-in009_-en-e	100S-IN009
Technical Data	Publication
100-td013_-en-p	100-TD013
