100-KR09DJ01

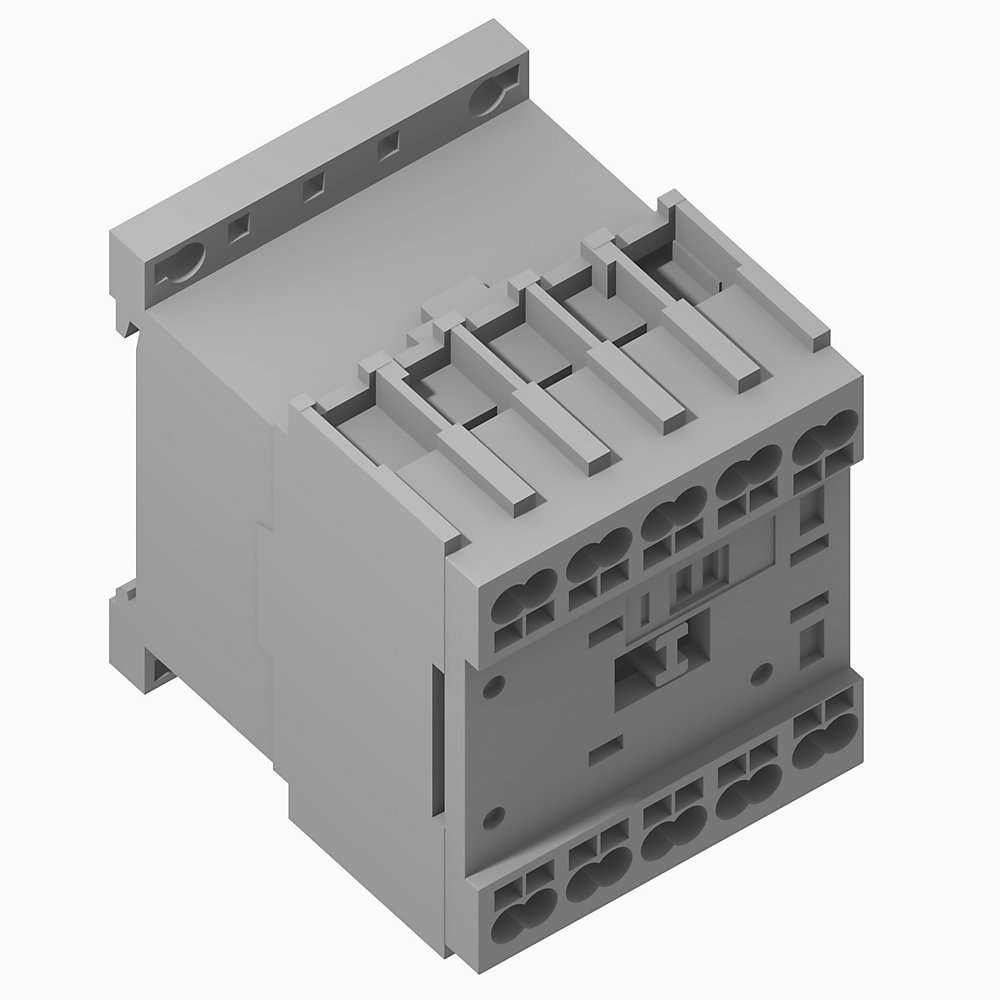

IEC 9 A Miniature Contactor

Name: IEC 9 A Miniature Contactor
Brand: Rockwell Automation
SKU: 100-KR09DJ01

Serial #:

Lifecycle status: Active

Description

Miniature Contactor, Spring Clamp Terminals, 9A, System Control Voltage: 24 (17...30)V DC Diode, 3 N.O. Main Contacts, 1 N.C. Auxiliary Contact, 1

Lifecycle status: Active

Description

Miniature Contactor, Spring Clamp Terminals, 9A, System Control Voltage: 24 (17...30)V DC Diode, 3 N.O. Main Contacts, 1 N.C. Auxiliary Contact, 1

Unique Product Identifier	100-KR09DJ01
UPC	662074512997
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	Multiple

Contact Rating	9 A
Special Features	R
Sub Brand	IEC

Coil voltage	24V (17-30)V DC diode
Contacts	3 power poles with internal NO or NC auxiliary contact, or 4 power poles, optional front-mounted 2- or 4- pole external auxiliary contact block
Current (Ie), max	9 A
Current rating	5 A
Degree of protection, auxiliary contact	IP2X
Features	Mini-contactors, uniform panel mounting dimensions, panel mounting or mounting on 35 mm DIN rail, AC or DC coil control, made of environmentally friendly materials
General purpose current (enclosed)	9 A per UL/CSA
Insulation class of the coil	Class F per IEC 60085, class 105 insulation system per UL 508
Optional accessories	Front-mount auxiliary contacts, surge suppressors, electronic timers, mechanical interlocks
Optional overload relays	None
Packaging	Single pack (quantity of 1)
Rated current (enclosed)	8A @ 230V, 1-phase per UL/CSA
Rated impulse withstand voltage (Uimp)	6 kV
Rated isolation voltage (Ui)	IEC: 690V, UL, CSA: 600V
Rated operational current (Ie)	8.5A @ 415V, AC-2, AC-3 (50 Hz), ambient temperature 60 °C
Rated operational power (Pe)	8.7 kW @ 500V, AC-1 (50 Hz), ambient temperature 60 °C
Rated power (enclosed)	5Hp @ 575V, 3-phase per UL/CSA
Rating for switching AC motors	3-poles: 5Hp @ 575V (AC-2, AC-3, AC-4), 3-phase (60 Hz)
Type of electrical connection of main circuit	Spring clA connection
Voltage type for actuating	DC

Mechanical

Altitude, max	2000 m (NN), per IEC 60947-4
Conductor cross section	Main contact, 2 conductor: 0.75...2.5 mm²
Number of auxiliary contacts as normally closed contact	1
Number of normally open contacts as main contact	3
Shock resistance	IEC 60068-2
Vibration resistance	IEC 60068-2

Ambient temperature	Storage: -55...80 (-67...176)
Climatic withstand	IEC 60068-2-30
Degree of protection	IP2X

Click the Download CAD button below to view all file formats available for download.

General	Publication
Circuit Protection Device and SCCR Tables	--
Product Cutsheet	--

Technical Data	Publication
140mp-td002_-en-p	140MP-TD002

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	100-KR09DJ01
UPC	662074512997
Estimated Lead Time	5 days
Standard Warranty Duration	1 year See details
Country of Origin	Multiple

Electrical & Connectivity

Contact Rating	9 A
Special Features	R
Sub Brand	IEC

Coil voltage	24V (17-30)V DC diode
Contacts	3 power poles with internal NO or NC auxiliary contact, or 4 power poles, optional front-mounted 2- or 4- pole external auxiliary contact block
Current (Ie), max	9 A
Current rating	5 A
Degree of protection, auxiliary contact	IP2X
Features	Mini-contactors, uniform panel mounting dimensions, panel mounting or mounting on 35 mm DIN rail, AC or DC coil control, made of environmentally friendly materials
General purpose current (enclosed)	9 A per UL/CSA
Insulation class of the coil	Class F per IEC 60085, class 105 insulation system per UL 508
Optional accessories	Front-mount auxiliary contacts, surge suppressors, electronic timers, mechanical interlocks
Optional overload relays	None
Packaging	Single pack (quantity of 1)
Rated current (enclosed)	8A @ 230V, 1-phase per UL/CSA
Rated impulse withstand voltage (Uimp)	6 kV
Rated isolation voltage (Ui)	IEC: 690V, UL, CSA: 600V
Rated operational current (Ie)	8.5A @ 415V, AC-2, AC-3 (50 Hz), ambient temperature 60 °C
Rated operational power (Pe)	8.7 kW @ 500V, AC-1 (50 Hz), ambient temperature 60 °C
Rated power (enclosed)	5Hp @ 575V, 3-phase per UL/CSA
Rating for switching AC motors	3-poles: 5Hp @ 575V (AC-2, AC-3, AC-4), 3-phase (60 Hz)
Type of electrical connection of main circuit	Spring clA connection
Voltage type for actuating	DC

Physical Characteristics

Mechanical

Altitude, max	2000 m (NN), per IEC 60947-4
Conductor cross section	Main contact, 2 conductor: 0.75...2.5 mm²
Number of auxiliary contacts as normally closed contact	1
Number of normally open contacts as main contact	3
Shock resistance	IEC 60068-2
Vibration resistance	IEC 60068-2

Compliance & Environment

Ambient temperature	Storage: -55...80 (-67...176)
Climatic withstand	IEC 60068-2-30
Degree of protection	IP2X
