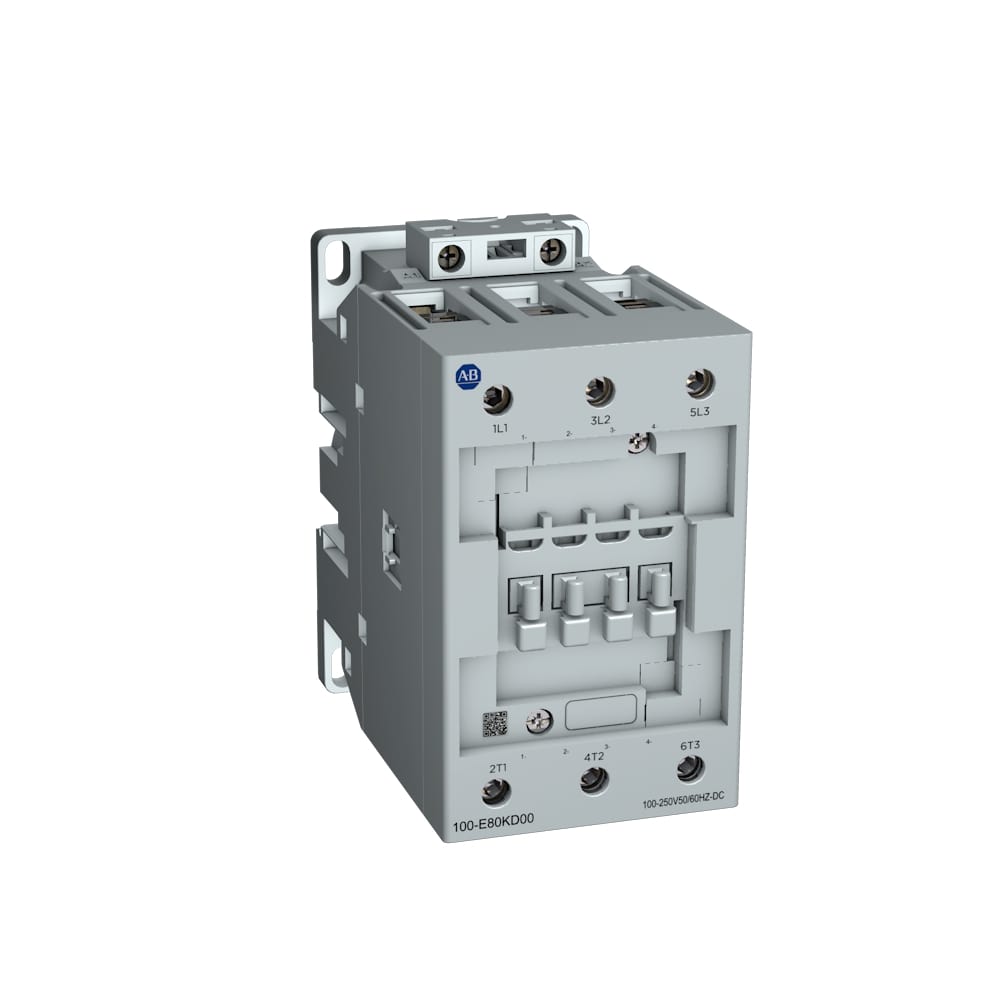

| Number of auxiliary contacts as normally open contact |
0
|
|---|---|
| Number of auxiliary contacts as normally closed contact |
0
|
| Vibration resistance |
IEC 60068-2-6
|
| Shock resistance |
IEC 60068-2-27
|
| Altitude, max |
3000 m of installation site
|
| Protection class |
Contactor main contact: IP2X (100-E40...E96 meet IP2X when used with 100-ESC...terminal shrouds.)
|
| Voltage type for actuating |
AC/DC
|
|---|---|
| Rated control supply voltage at AC 50 Hz |
100 V
|
| Rated control supply voltage at AC 60 Hz |
100 V
|
| Rated control supply voltage at DC |
100 V
|
| Type of electrical connection of main circuit |
Screw connection
|
| Rated impulse voltage withstand (Uimp) |
8 kV
|
| Operating time, closing delay |
42 ms
|
| Operating time, opening delay |
17 ms
|
| Optional overload relays |
Electronic
|
| Rated isolation voltage (Ui) |
600V per UL, CSA
|
| Function |
Non-reversing contactor
|
| Standard coil, pick-up |
40VA/40 W @ 100...250V AC/DC
|
| Standard coil, hold-in |
4VA/2 W @ 100...250V AC/DC
|
| General purpose current (enclosed) |
80A @ 600V per UL/CSA
|
| FLA |
105A @ 600V, 3-phase per UL/CSA HVAC applications
|
| Rated operational current and power (enclosed) |
89A @ 250V DC, with 3-poles in series per UL/CSA
|
| LRA |
630 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications
|
| Electromagnetic compatibility |
IEC 60947-1 - Environment A and B (100-E09...E38 only.)
|
| Operating limits, dropout |
(≤0.60) x Us @ DC control
|
| Rating for switching AC motors |
3-poles: 75Hp @ 575V, AC-2, AC-3 (60 Hz)
|
| Operating limits, pick-up |
(0.85...1.1) x Us @ 50/60 Hz
|
| MCCB current rating |
Type 2 (per IEC 60947-4-1): 880A @ 400V, 70 kA available fault current
|
| DIN fuses (gG) current rating |
Type 2 (per IEC 60947-4-1): 80A @ 690V, 60 kA available fault current
|
| Rated voltage (Ue) |
24V @ 48V, 110V @ 220V, 440V DC
|
| Rated operational current and power |
56A @ 115V AC, 500000 electrical ops, 1-phase per UL/CSA elevator duty
|
| Coil voltage |
100 to 250V AC/DC
|
| Switching of lighting loads |
Tungsten lA: 105A @ 600V, 3-phase (break all lines) per UL/CSA
|
| UL class RK5 fuses rating |
Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 200A @ 600V, 10 kA available fault current
|
| Rated operational current (Ie) |
85A @ 690V, AC-1 active power load (50/60 Hz), ambient temperature 70 °C (158 °F)
|
| UL class J and CSA HRCI-J fuses rating |
Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 200A @ 600V, 100 kA available fault current
|
| UL inverse-time circuit breaker |
Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 250A @ 600V, 50 kA available fault current
|
| Switching of power transformers |
Apparent power: 99 kVA @ 600V @ 60Hz (n = 20)
|
| Rated operational power (Pe) |
90 kW @ 415V, AC-1 active power load (50/60 Hz), ambient temperature 40 °C (104 °F)
|
| Switching of DC loads |
3-poles in series: 125A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C)
|
| Optional accessories |
Side-or front-mount auxiliary contacts, Mechanical interlocks, IP20 terminal shields, Connecting bars
|
| Features |
Panel mounting or mounting on 35 mm DIN rail, AC/DC electronic coil, Made of environmentally friendly materials
|
| Climatic withstand |
Category B according to IEC 60947-1, annex Q
|
|---|---|
| Ambient temperature |
Storage: -40...+70 (-40...+158)
|
| Coil insulation class |
Class F per IEC 60947-4-1
|
|---|
