100-D630ED11

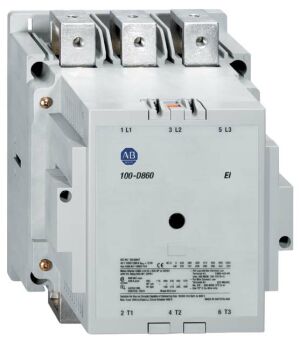

IEC 630 A MCS D Contactor
Rockwell Automation announces that as of March 31, 2019, the IEC 630 A MCS D Contactor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
March 31, 2019
Replacement Category:
Engineering Replacement
Replacement Product:
100-E580ED11
[https://www.rockwellautomation.com/en-us/products/details.100-E580ED11.html]
Product at a glance
Rockwell Automation announces that as of March 31, 2019, the IEC 630 A MCS D Contactor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
March 31, 2019
Replacement Category:
Engineering Replacement
Replacement Product:
100-E580ED11
[https://www.rockwellautomation.com/en-us/products/details.100-E580ED11.html]
Product at a glance
| Contact Configuration |
1 N.O. 1 N.C.
|
|---|---|
| Maximum Ampere Rating |
630 A
|
| Sub Brand |
IEC
|
| Voltage type for actuating |
AC/DC
|
|---|---|
| Rated control supply voltage at AC 50 Hz |
110 V
|
| Rated control supply voltage at AC 60 Hz |
110 V
|
| Rated control supply voltage at DC |
110 V
|
| Type of electrical connection of main circuit |
Screw connection
|
| Rated impulse withstand voltage (Uimp) |
12 kV
|
| Current (Ie), max |
630 A
|
| Optional overload relays |
Electronic
|
| Current rating |
115 A
|
| Main current circuit resistance |
0.19 mΩ
|
| Rated isolation voltage (Ui) |
600V @ UL, CSA
|
| Auxiliary contacts |
IP20 IEC 60529/DIN 40050
|
| Rated power (enclosed) |
600Hp @ 575V, 3-phase per UL/CSA
|
| General purpose current (enclosed) |
630 A per UL/CSA
|
| Power dissipation |
226.2 W @ 400V, AC-3, Ie
|
| Operating time |
70…145 ms @ DC, closing delay
|
| Short time withstand (Icw) |
6300A @ 10s, 60 °C (140 °F)
|
| Coil consumption, hold-in |
33VA/30 W @ 50 Hz, 60 Hz, 50/60 Hz
|
| Coil consumption, pick-up |
1980 W @ DC control
|
| Total power dissipation |
DC control: 256.2 W @ 400V, AC-3, Ie
|
| Operating limits, dropout |
(0.1...0.8) x Us @ DC control
|
| Insulation class of the coil |
Class B per VDE 0660, table 22
|
| Rating for switching AC motors |
600Hp @ 575V, 60 Hz, 3-phase (AC-2, AC-3)
|
| Operating limits, pick-up |
(0.85...1.1) x Us @ DC control
|
| BS88 fuses current rating |
TBD
|
| UL class L fuses rating |
2000A @ 600V, 35 kA available fault current per UL 508 and CSA 22.2 No. 14
|
| Rated voltage (Ue) |
690V @ AC, 50/60 Hz
|
| DIN fuses (gG, gL) current rating |
TBD
|
| Coil voltage |
110-130V 50/60 Hz/110-130V DC electronic coil w/ electronic interface
|
| Rated operational current (Ie) |
800A @ 690V, AC-1 (50 Hz), ambient temperature 40 °C
|
| UL inverse-time circuit breaker |
1200A @ 600V, 30 kA available fault current per UL listed combination
|
| Rated operational power (Pe) |
956 kW @ 690V, AC-1 (50 Hz), ambient temperature 40 °C
|
| Optional accessories |
Side-mount auxiliary contacts, surge suppressors, IP20 terminal blocks, terminal shields, terminal covers, connecting components, terminal lugs, mechanical/electrical interlocks
|
| Features |
Panel mounting only, made of environmentally friendly materials, AC or DC coil control (conventional or electronic), integrated PLC interface (electronic coil)
|
| Contacts |
3 power poles with external NO and NC side-mounted auxiliary contact, optional side-mounted 2-pole external auxiliary contact blocks
|
| Conventional coil type |
True
|
| Electronic-EI coil type |
True
|
| Rated coil frequency |
AC 50 Hz, 50/60 Hz DC
|
| Screw terminals |
Threaded
|
|---|---|
| Vibration resistance |
IEC 60068-2-6
|
| Shock resistance |
IEC 60068-2-27
|
| Cross section per UL/CSA |
(2X) 2/0...500 MCM
|
| Lifespan |
Mechanical DC control: 2000000 ops
|
| Recommended torque |
68 Nm
|
| Weight |
Non-reverse: 28.6 kg @ DC
|
| Conductor cross section |
Main contact, s maximum: 16 mm
|
| Protection class |
IP00 IEC 60529/DIN 40050
|
| Altitude of installation site, max |
2000 m (NN), per IEC60947-1
|
|---|---|
| Protection against accidental contact |
Finger-and back-of-hand proof per VDE 0106, part 100
|
| Ambient temperature |
Storage: -40…80 °C
|
| Single contactor cover |
IP10 IEC 60529/DIN 40050
|
|---|---|
| Contactor with frame terminal block |
IP20 IEC 60529/DIN 40050
|
| Installation Instructions | Publication |
|---|---|
| 100-in042_-mu-e | 100-IN042 |
| Technical Data | Publication |
|---|---|
| 100-td013_-en-p | 100-TD013 |
