Details pane for an Alarm Summary

In a medium Alarm Summary table intended for HMI devices with seven-inch to nine-inch screens, the Details
pane replaces the list of alarms in the table. In a large Alarm Summary table exists for HMI devices with ten-inch or larger screens, the Details
pane opens at bottom of the table.

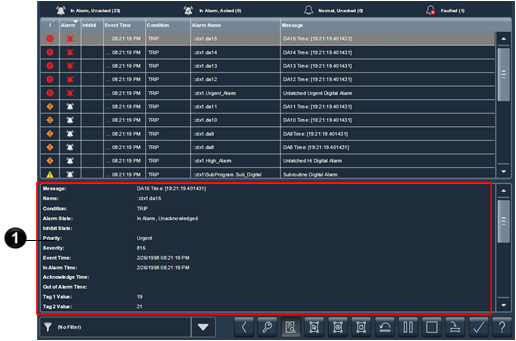

Item	Description
	The Details pane with additional details for the selected alarm. This pane displays data, such as Current Value, In Alarm Time, Out of Alarm Time, and tag values. When multiple alarms are selected, details display for the last selected alarm.

Alarm Summary

Alarm table interface components
