Linear gauge components

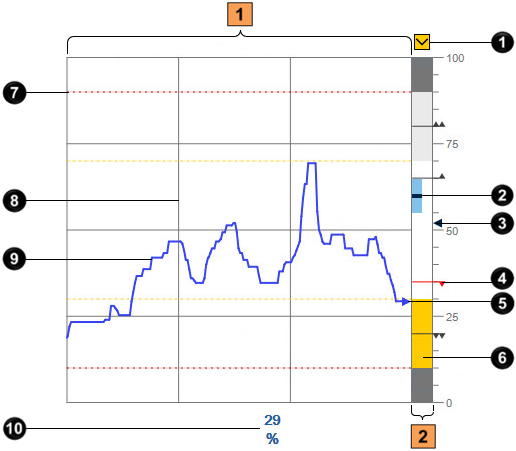

This is an example of a linear gauge with a table explaining the components on it.
Components | Description |
|---|---|
 | Alarm indicator. It is displayed when the process variable reaches or
crosses a threshold. |
 | Target value and tolerant range |
 | Setpoint. It is the desired target value for the process
variable. |
 | Control limit. It is the predefined limit that helps ensure safe and
efficient operations by preventing alarm conditions. |
 | Value indicator |
 | Threshold. It triggers visual alerts when values reach or cross
predefined boundaries. |
 | Threshold line |
 | Grid line |
 | Line |
 | Current value and engineering unit |
 | Time duration |
 | Bar width |
