MODULE_INFO

The MODULE_INFO instruction reads module information from a plug-in module or an expansion module.
Operation details:
  • Plug-in module information is read during Run time.
  • The 2080-MEMBAK-RTC memory plug-in module is not supported.
  • Expansion module information is read when the module is powered on.
  • When a plug-in or expansion module is not defined with a ModuleID, ProductType, or ProductCode, the MODULE_INFO operation returns 0 for the respective output parameter.
  • The plug-in and expansion module identification information is defined by Allen-Bradley and is provided below as part of the MODULE_INFO description.
Languages supported: Function block diagram, ladder diagram, structured text.
This instruction applies to the
Micro820
 L20E,
Micro850
 L50E, and
Micro870
 L70E controllers. Expansion modules are only supported on the
Micro850
 L50E and
Micro870
 L70E controllers.
MODULE_INFO
MODULE_INFO
MODULE_INFO parameters
Parameter
Parameter Type
Data Type
Description
Enable
Input
BOOL
Instruction block enable.
  • TRUE: Executes MODULE_INFO read operation.
  • FALSE: Does not execute the read operation. All output data values are reset to 0.
ModuleType
Input
USINT
Identifies the module type:
  • 1: 2085 Expansion Module.
  • 2: 2080 Plug-in Module.
SlotID
Input
USINT
The slot number where the plug-in or expansion module is located.
Slot IDs are: 1, 2, 3, 4, and 5
Slot 1 is on the far left.
Done
Output
BOOL
  • TRUE: Operation completed successfully.
  • FALSE: Operation is not executing or an error condition occurred.
Present
Output
BOOL
Detects the plug-in or expansion module in the controller slot.
  • TRUE: Module is physically present.
  • FALSE: Module is not physically present.
ModID
Output
UINT
The identification for the module in the controller slot.
  • Plug-in modules are defined with a unique module identifier.
  • Expansion modules are not defined with a unique module identifier, ModID returns 0.
VendorID
Output
UINT
The plug-in or expansion module vendor ID.
For Allen-Bradley products, the vendor ID is 1.
ProductType
Output
UINT
The plug-in or expansion module product type.
ProductCode
Output
UINT
The plug-in or expansion module product code.
ModRevision
Output
UINT
The plug-in or expansion module revision information.
Error
Output
BOOL
Indicates the existence of an error condition.
  • TRUE: An error is detected.
  • FALSE: No error.
ErrorID
Output
USINT
A unique numeric that identifies the error. The errors are defined in the MODULE_INFO error codes.
MODULE_INFO error codes
Error Code
Description
1
Invalid module type.
Change to a valid module type.
Valid module types are:
  • 1: 2085 Expansion Module. Only supported on
    Micro850
     L50E controllers.
  • 2: 2080 Plug-in Module. Supported on
    Micro820
     L20E and
    Micro850
     L50E controllers.
2
Invalid slot number.
Change to a valid slot number.
3
Invalid expansion module type.
4
Expansion module fatal error.
5
Plug-in module Read Info is not supported.
6
Plug-in module read error occurred while reading the Module ID.
7
Plug-in module read error occurred while reading the Vendor ID.
8
Plug-in module read error while reading the Product Type.
9
Plug-in module read error occurred while reading the Product Code.
10
Plug-in module read error occurred while reading the Module Revision.

MODULE_INFO examples

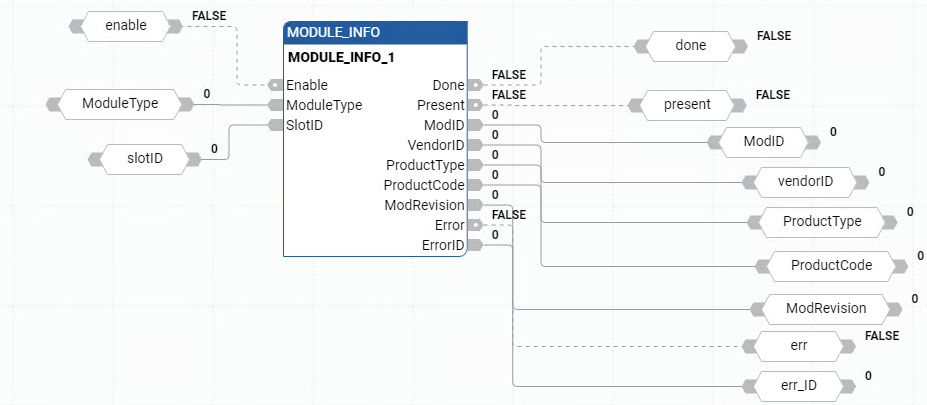

MODULE_INFO function block diagram example
MODULE_INFO function block diagram example

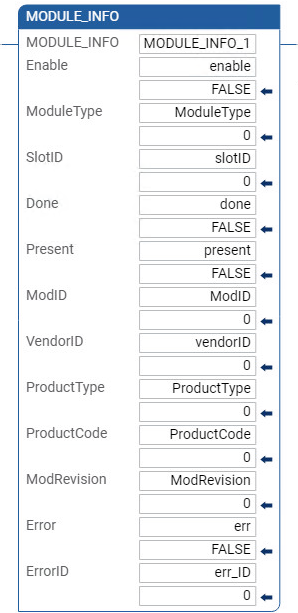

MODULE_INFO ladder diagram example
MODULE_INFO ladder diagram example

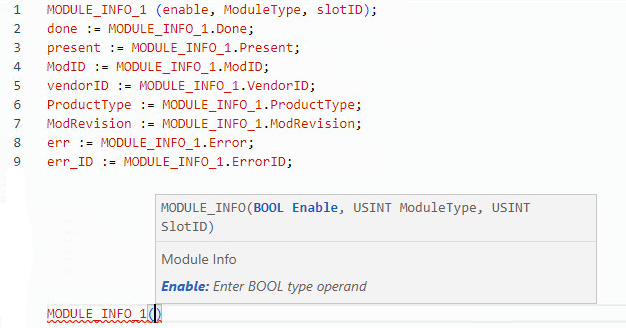

MODULE_INFO structured text example
MODULE_INFO structured text example

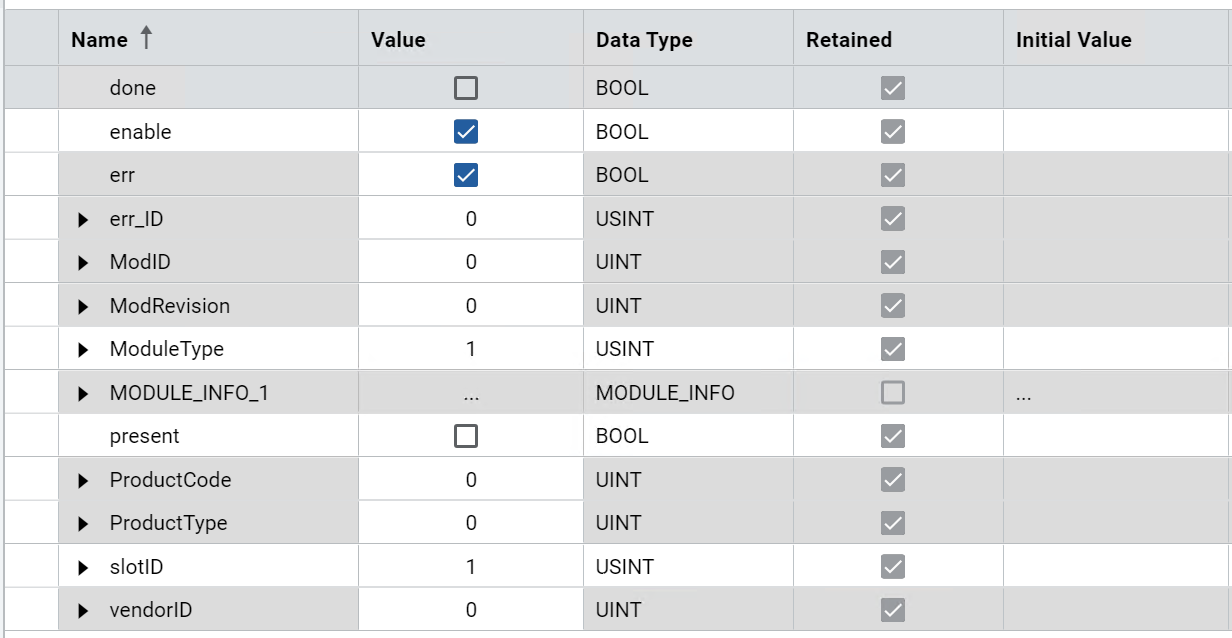

Results
Results
