Duration Comparison report

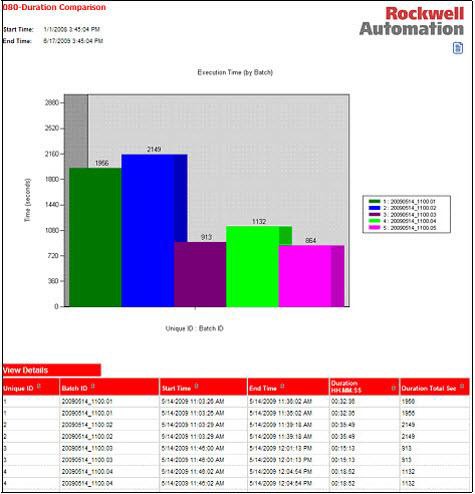

The Duration Comparison report displays a comparison of batch durations. Select multiple batches from the list to display them in the report's chart.

A table in the report outlines the properties of the displayed batches in more detail.

There is a hyperlink to return to the Batch Listing report. This hyperlink does not pass any parameters back to the Batch Listing report.

This report includes filters for

Process Cell

,

Recipe Name

,

Unit Name

, and

Unique ID

. The

Batch ID

filter accepts search criteria in the form of a

Batch Name

. Use the asterisk (*) as a wildcard character.
