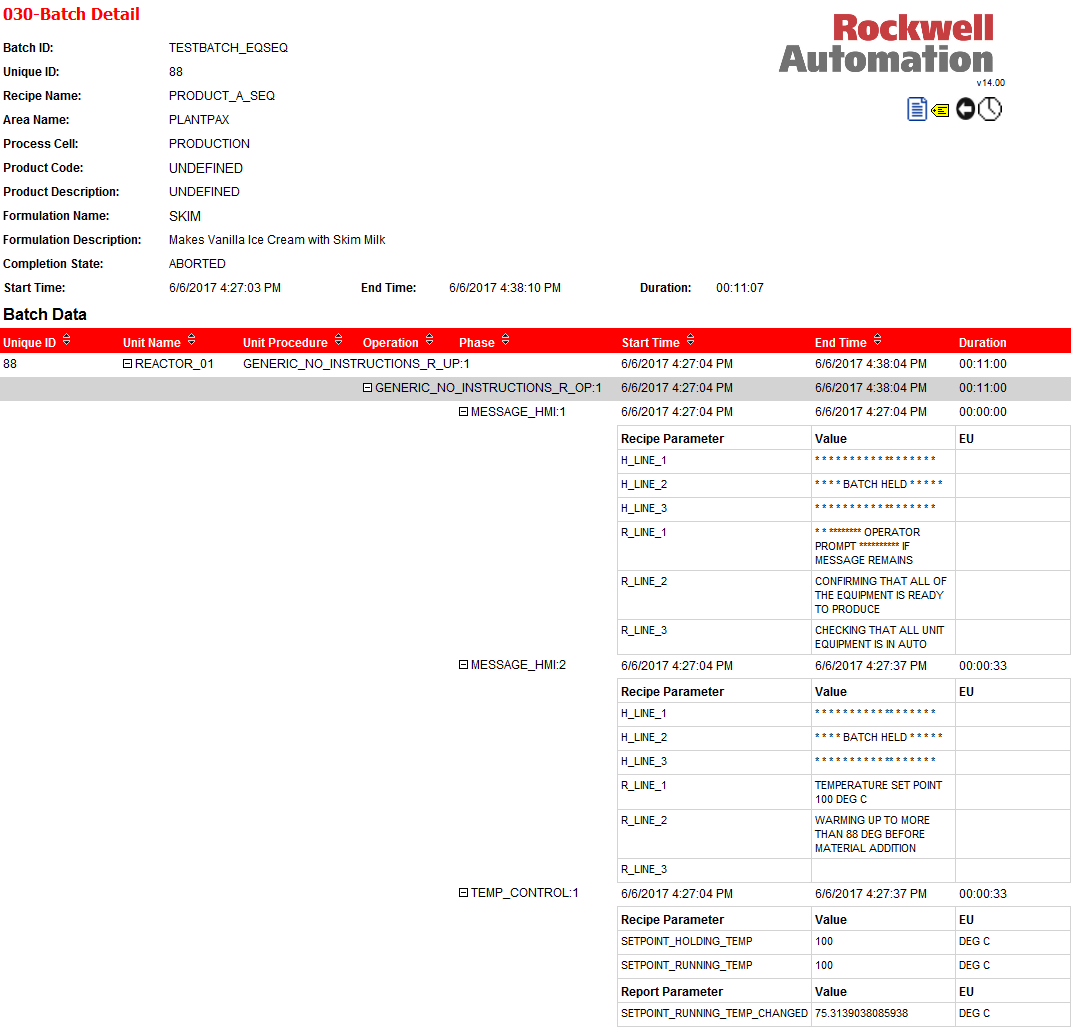

Batch Detail report
The Batch Detail report displays the details of a specified batch. This report includes a header section, phase table, alarms and events, and state changes. The header displays the specifics of the batch, such as:
Header name | For FactoryTalk Batch , displays | For SequenceManager , displays |
|---|---|---|
Batch ID | Batch ID | Sequence ID |
Unique ID | FactoryTalk Batch Unique ID | SequenceManager Unique ID |
Recipe Name | Recipe Name | Sequence Name |
Area Name | Area | Controller Serial Number |
Process Cell | Process Cell | Controller Serial Number |
Product Code | Product Code | Blank for SequenceManager |
Product Description | Procedure Description | Extended Text |
Formulation Name | Recipe Formulation Name. If formulation parameters are not passed, or are an empty string, "Default Formulation" displays. | Blank for SequenceManager |
Formulation Description | Recipe Formulation Description. If formulation parameters are not passed, or are an empty string, the description is empty. | Blank for SequenceManager |
Completion State | — | — |
Start Time | — | — |
End Time | — | — |
Duration | — | — |
Batch Failures | Failure message. | The ordinal value of the failure message. |
The Phase table displays a list of the units used during a specified time period for a particular batch, and includes Operation Sequences from both
FactoryTalk Batch
and SequenceManager
events. The report lists:- Unit Name
- Phase
- Start and End times
- Duration of each phase
Each level can be expanded down to the Equipment phase to view details, which include the recipe and report parameters and their corresponding values.
TIP:
Phases that do not have recipe or report parameters do not appear in the Batch Data table. To see a list of all phases (including those that do not have recipe or report parameters), use the Batch Summary report.
The Batch Detail report displays Abnormal Exceptions that occurred during a batch. The abnormal exception states are STOPPED, ABORTED, HELD, and FAULTED. It does not display any other states. The report also displays Alarms & Events, Batch Failures, and a Setpoint vs. Actual Summary section.
Setpoint vs. Actual Summary section
- VersionThe version of the FactoryTalk Batch report provides the following information:
- When the report was last modified.
- The version of the report that is currently installed.
- If a custom report is based on a particular version of a report, it shows which version of the report was used.
Hyperlinks
This report has hyperlinks to these reports:
Icon | Destination Report |
|---|---|
White Tag | Batch Listing |
Yellow Tag | Batch Summary |
White Arrow | Backward Tracing |
Clock | Batch Execution |
Filters
This report features filters for the following:
Filter name | Description |
|---|---|
Start Time | Filters based on start time. Select NULL to filter from the beginning of collected time. |
End Time | Filters based on end time. Select NULL to filter to the end of collected time. |
Batch ID Filter | Accepts search criteria in the form of a Batch Name . Use the asterisk (*) as a wildcard character. |
Process Cell | Filters based on the process cell name or controller serial number. |
Recipe Name | Filters based on the recipe name or the sequence name. |
Unit Name | Filters based on the unit name or the sequence unit ID. |
Unique ID | Specifies which records display in the report. |
Show All Levels
option expands all items in the Phase table such as operations and phases in the generated report. Provide Feedback
