Backward Tracing report

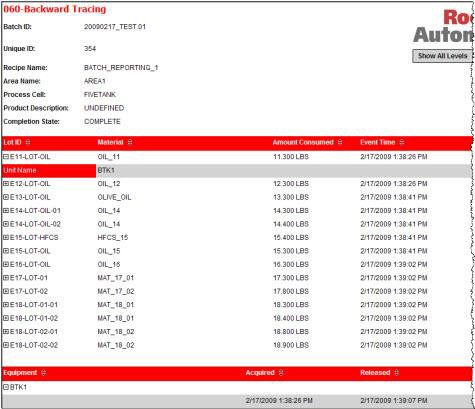

The Backward Tracing report displays the lot and equipment used for a particular batch. The report includes a header section and a Lot table. The header displays the specifics of the batch, such as:
Header name | For FactoryTalk Batch , displays | For SequenceManager , displays |
|---|---|---|
Batch ID | Batch ID | Sequence ID |
Unique ID | FactoryTalk Batch Unique ID | SequenceManager Unique ID |
Recipe Name | Recipe Name | Sequence Name |
Area Name | Area | Controller Serial Number |
Process Cell | Process Cell | Controller Serial Number |
Product Description | Procedure Description | Extended Text |
Formulation Name | Recipe Formulation Name. If formulation parameters are not passed, or are an empty string, "Default Formulation" displays. | Blank for SequenceManager |
Formulation Description | Recipe Formulation Description. If formulation parameters are not passed, or are an empty string, the description is empty. | Blank for SequenceManager |
Completion State | — | — |
Start Time | — | — |
End Time | — | — |
Duration | — | — |
The Lot table displays the Lots used by a particular batch and the Equipment table displays the equipment used by the batch. The Lot table includes:
- Lot ID
- Material ID
- Amount Consumed
- Recipe Name
- Event Time
Expand the lot to display the units used by the batch. The Equipment table displays the equipment used by the batch and when it was acquired and released.
Hyperlinks
This report has hyperlinks to these reports:
Icon | Destination Report |
|---|---|
White Tag | Batch Listing |
Yellow Tag | Batch Summary |
Magnifying Glass | Batch Detail |
Clock | Batch Execution |
Filters
This report includes filters for
Process Cell
, Unit Name
, Recipe Name
, and Unique ID
. Use the Batch ID
filter to enter search criteria in the form of a Batch Name
. Use the asterisk (*) as a wildcard character.Provide Feedback
