State Name

The tag value is shown as State name on the training page. If there is a change in the tag value , a separate tab is created, using the tag value for the State name. For example, the value for the tag selected during controller configuration is 'State A', then the state name is 'State A'.

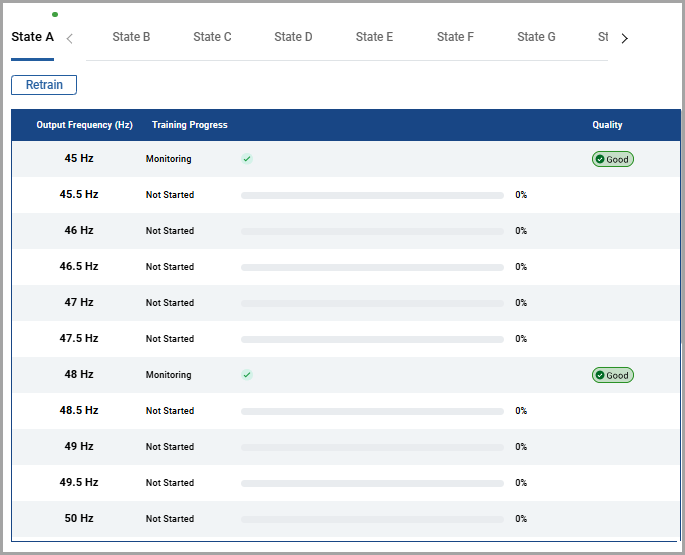

Following is an example image where the component has multiple states.

In the above example, 'State A' is called the

Current State

. It can also be referred as active state. The name of the Current State is denoted with bold text, blue bottom border and a green dot indicating active. The active state is always available on the left side. The states which are inactive are grouped together and a pagination control is available to select the required state.

When a particular state is selected, a blue underline appears giving focus on which inactive state the user is currently in focus. The system automatically sorts inactive states by creation timestamp, ensuring the most recently created state appear first across the sequence.

If multiple state definition tags are selected on the

State Definition

page during controller configuration, the state name will be displayed as "<tag1-value><tag2-value>".
