Monitoring Status

On the Training page of a component, the user can view the following status in the Monitoring Status section:
  • Source Controller Connection Status
    : When the Controller is configured, the status is displayed as green and
    Source controller connected
    . For the default state, it is displayed as
    Source controller not configured
    .
  • Controller path
    : The path of the controller is displayed. For the default state, it is displayed as '
    --
    '.
  • Monitoring Tag status
    : When the monitoring tag is selected, the status is displayed as green and
    Monitoring tag on
    . For the default state, it is displayed as grey, and
    No monitoring tag selected
    .
  • Current Frequency
    : The current frequency at which the component operates is displayed.
  • Current State
    : Name of the active state is displayed here. For the default state, it is displayed as '
    --
    '.
  • Output Controller Connection Status
    : When the output controller is configured, the status is displayed as green and
    Output controller Connected
    . For the default state, it is displayed as
    Output controller not configured
    .

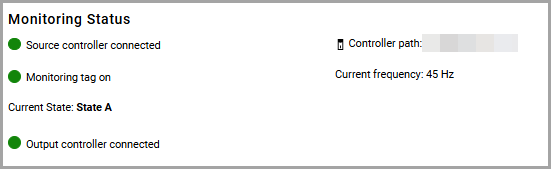

Monitoring Status

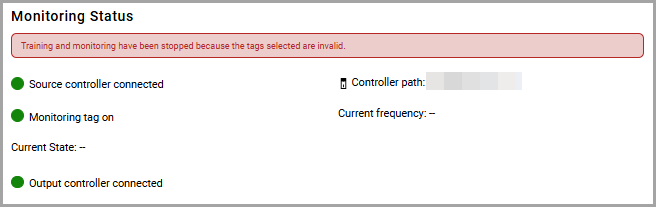

If only one tag is selected on the State Definition page, and if the tag is invalid, training and monitoring will be stopped. A message is displayed in red, as shown in the following image, and the current state will be shown as
--
.
If multiple tags are selected and all the tags are invalid, training and monitoring will be stopped.
Monitoring Status for Invalid Tags
