Configure Asset

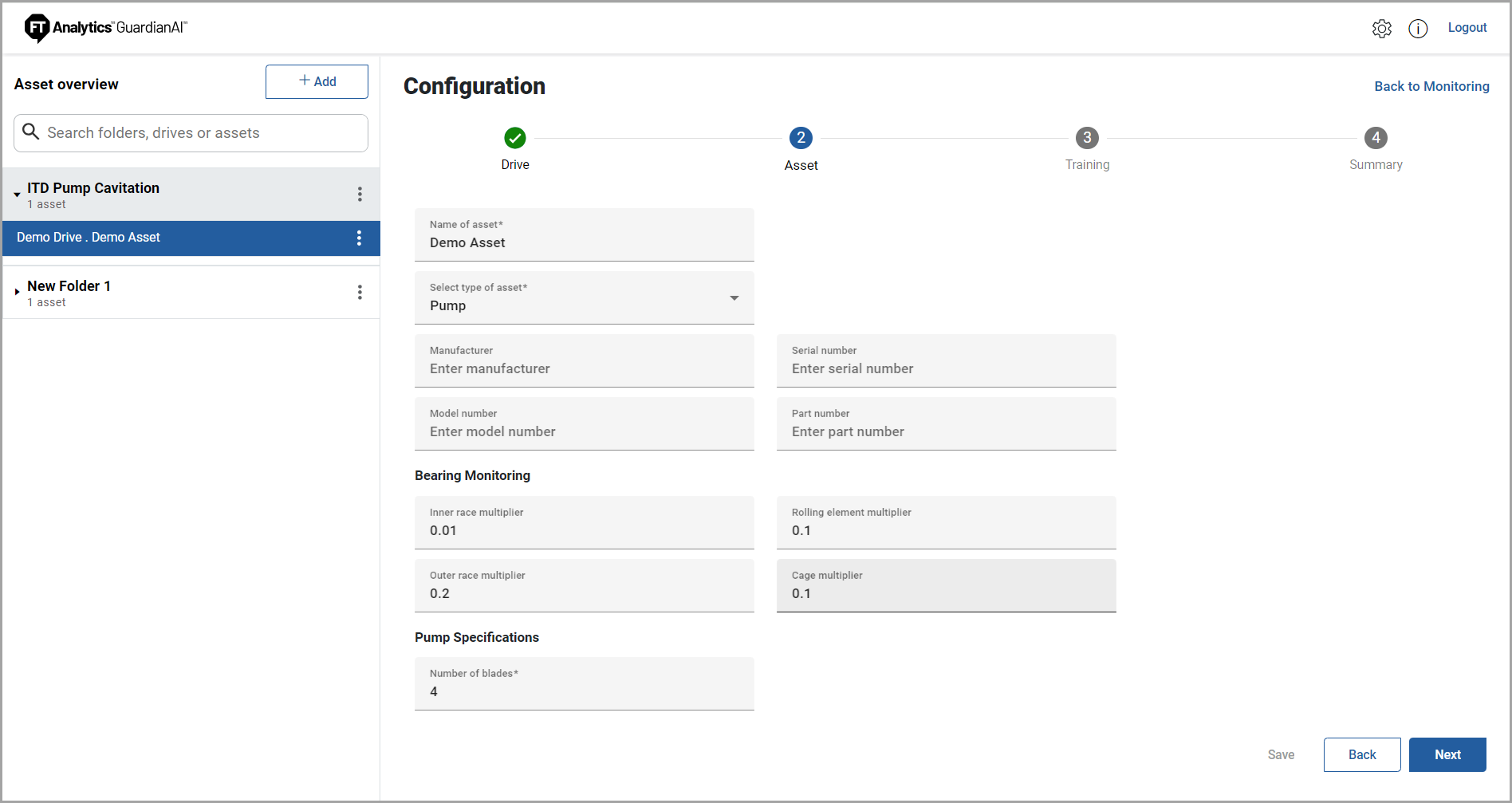

Perform the following steps to configure a new asset:
  1. Provide the following details in
    Asset
     section of
    Configuration
    :
    • Name of asset
      : Provide a unique name for an asset.
    • Select type of asset
      : Select the type of asset. One of Pump, Fan, Blower, Motor (used for other asset types).
    • Manufacturer
      : Provide the name of the manufacturer. This is optional.
    • Serial number
      : Provide the serial number of the asset. This is optional.
    • Model number
      : Provide the model number of the asset. This is optional.
    • Part number
      :  Provide the part number of the asset. This is optional.
  2. Provide the following details in
    Bearing Monitoring
     section:
    • Inner race multiplier
    • Rolling element multiplier
    • Outer race multiplier
    • Cage multiplier
    For more details on these parameters, refer to Bearing Monitoring.
  3. Provide the following details in the
    Pump
    /
    Fan
    /
    Blower Specifications
    :
    NOTE: This option is visible only when you select the Pump, Fan, or Blower as the asset type.
    • Number of blades
      : Provide the number of blades. The number of blades should be greater than or equal to 2 and less than or equal to 40.
