Jumps to Steps

Jump symbols indicate a connection link from a transition to a step, without having to draw a connection line. Reference the jump symbol with the name of the destination step:
A Jump symbol cannot represent a link from a step to a transition.
Jump to Step S1
Example

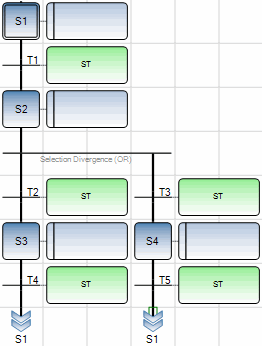

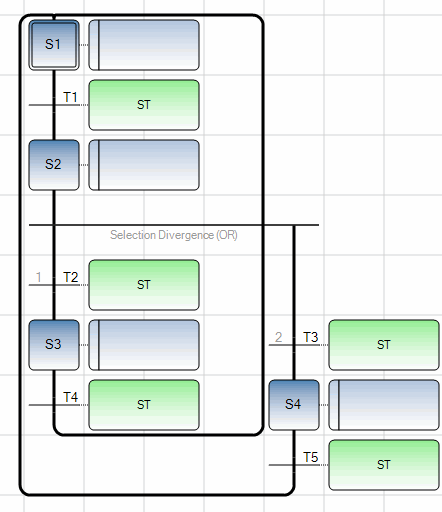

These charts are equivalent. The chart on the left uses links to return from the bottom to the top of the chart while the chart on the right uses jumps to return to the top of the chart.
sfc_js2
sfc_js3
To insert a jump to a step
  1. From the
    Toolbox
    , drag the jump element into the language container and place it directly below the existing transition.
  2. In the
    Select Destination Step
     dialog box, select the required step and then click
    OK
    .
    The jump is displayed in the language container.
