BLINK

Generates a blinking signal.
lrsb_bl1_aadvance
Arguments
RUN
BOOL
Mode: TRUE=blinking / FALSE=reset the output to false
CYCLE
TIME
Blinking period. Possible values range from 0ms to 1193h2m47s294ms.
Q
BOOL
Output blinking signal

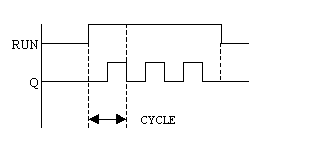

Timing diagram
lrsb_bl2_aadvance
