FM_READ

Reads message variables from a binary file. For use with F_ROPEN and F_CLOSE. This procedure makes a sequential access to the file, from the previous position. The first call after F_ROPEN reads the first string of the file, each call pushes the reading pointer. A string is a terminated by null (0), end of line ('\n') or return ('\r'); To check if the end of file is reached, use F_EOF.
IMPORTANT: Avoid using this function. This function is intended to be obsolete.
lrsf_fmr1
Arguments
ID
DINT
file number: returned by F_ROPEN
Q
MESSAGE
message value read from file
Example

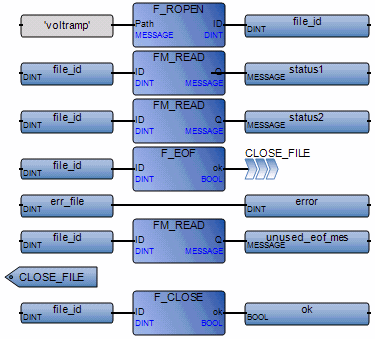

(* FBD program using file management blocks *)
lrsf_fmr2
(* ST Equivalence: *)
file_id := F_ROPEN('voltramp.bin');

status1 := FM_READ(file_id);

status2 := FM_READ(file_id);

IF (F_EOF(file_id)) THEN

    error := err_file;

    unused_eof_mes := FM_READ(file_id);

END_IF;

ok := F_CLOSE(file_id);
