Reset Coil

Reset coils enable Boolean output of a connection line Boolean state.
ldr_rsc1
Left Connection
Right Connection
The associated variable is reset to FALSE when the Boolean state of the left connection becomes TRUE. The output variable keeps this value until an inverse order is made by a SET coil. The state of the left connection is propagated into the right connection. The right connection can be connected to the right vertical power rail.

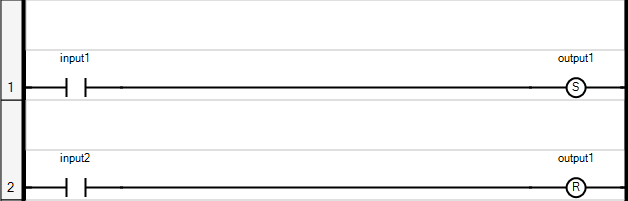

Example
ldr_sc2
(* ST Equivalence: *)
IF input1 THEN

output1 := TRUE;

END_IF;

IF input2 THEN

output1 := FALSE;

END_IF;
