MANTRK

Enables manual set-point tracking.
mantrk_block
Parameters for the MANTRK function block:
Parameter
Data Type
Description
Xout
REAL
PID_II function block output.
XO
REAL
Manual set-point input.
AUTO
BOOL
Automatic (TRUE) or manual (FALSE) control mode.
XOout
REAL
When AUTO is TRUE, XOout sets to the current value of Xout.
When AUTO changes from TRUE to FALSE, XOout remains at the previous value until the value of the manual set-point input (XO) changes. When the XO value then changes, XOout sets to the value of XO.

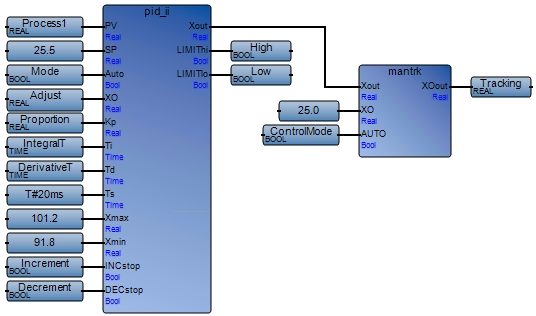

Function Block Diagram Example
mantrk_fbdexample
Structured Text Example
pid_ii_1(Process1, 25.5, Mode, Adjust, Proportion, IntegralT, DerivativeT, T#20ms, 101.2, 91.8, Increment, Decrement); Tracking := mantrk_1(pid_ii_1.Xout, 25.0, ControlMode);
