TON

Increases an internal timer up to a given value.

Arguments
IN	BOOL	When detecting a rising edge, starts increasing the internal timer. When detecting a falling edge, stops and resets the internal timer.
PT	TIME	Defines the maximum programmed time
Q	BOOL	If Q is TRUE = programmed time is elapsed.
ET	TIME	(output) Determines the current elapsed time. The possible values range from 0ms to 23h59m59s999ms.

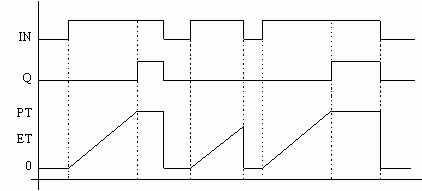

Timing diagram
