XY Plot interface

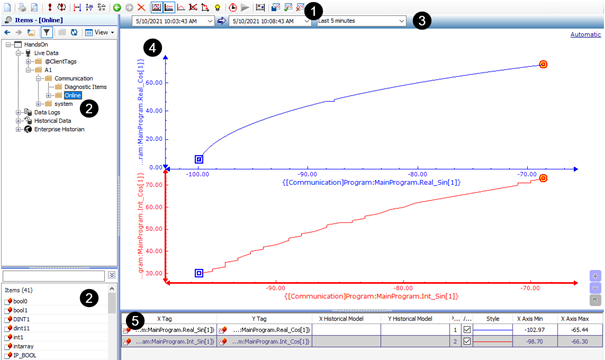

The following is an overview of the XY Plot interface:

XY Plot interface_update

Item	Name	Description
	Toolbar	Displays the commonly used commands such as Live Mode , Automatic Scales , Trace Highlighting and so on.
	Tag Explorer	Displays the hierarchy of folders in a tree view that represents the areas and tag folders of these data sources: Live Data : FactoryTalk Live Data tags. Data Logs : FactoryTalk View SE data log model tags. DataLogPro : FactoryTalk View SE DataLogPro tags. Historical Data : FactoryTalk Historian tags (or points). Asset Framework : FactoryTalk Historian Asset Framework tags (or attributes). Tip : Only attributes of PI Point type defined under Elements are supported, and the historical data is from the PI Points' associated historian server. For FactoryTalk Historian Asset Framework servers, avoid assigning the same name to both elements and attributes in the same element path. If they share a name, only one type, either the element or the attribute, will appear in the explorer. Enterprise Historian : PI Server tags (or points). When you select a folder, its tags are listed in an alphabetically sortable list on the Items pane at the bottom. Double-click a tag to add it to the x-axis, and then double-click another tag to add it to the y-axis. At runtime, you can also drag and drop one or multiple tags to the chart.
	Time Bar	Provides options to select a time period using absolute or relative time. When using absolute time, select specific dates and times for the start and end of the time period. When using relative time, select a typical time period, such as the last 5 minutes or last week.
	Chart	Displays data from one or more pairs of tags, also known as traces, over a period of time.
	Trace List	Displays the list of traces that are currently on the chart.
