Use instruction-based equipment modules

Equipment modules that derive from a material-based recipe (MBR) phase can be instruction-based or automation-based. When you are working with an instruction-based equipment module, the phase parameters show up as part of the instructions, and phase reports consist of data from the instructions. The MBR generates a prompt, which is formatted into instructions by the
eProcedure
 Server.
ePro_Ins_UAPexample
\t\t\t

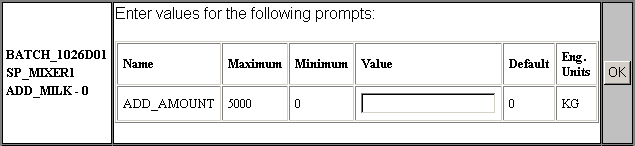

Sample of an MBR-generated prompt
TIP: If there is more than one parameter prompt for any given control step, each prompt is displayed in a separate instruction step row.
The MBR function uses a number of parameters and reports. The table below describes how they are used within the
eProcedure
 instruction files:
Name
Parameter/ Report
Used in an Instruction...
AMOUNT
Parameter
As data to be viewed by the operator
MATERIAL
Parameter
As data to be viewed by the operator
LOT
Parameter (optional)
As data to be viewed by the operator (might be necessary for the operator to locate the specific quantity)
LABEL
Parameter (optional)
As data to be viewed by the operator (might be necessary for the operator to locate the specific quantity)
CONTAINER
Parameter (optional)
As data to be viewed by the operator (might be necessary for the operator to locate the specific quantity)
ACTUAL_AMOUNT*
Report
Entered by the operator
FEED_COMPLETE*
Report
Defaults to TRUE to indicate that the feed and phase completed successfully.

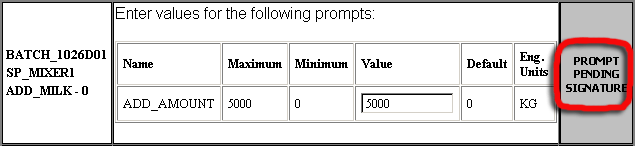

If the prompt in question has a pending signature request, the submit button is replaced with the words "Prompt Pending Signature".
ePro_client_pending_prompt_example
You can acknowledge the signature by clicking the
Signatures
 button in the View Selection area to open the Signature List view. Double-click the appropriate signature to display the Signature Request for the prompt. Complete the
Signature
 dialog box, click
Sign
, and then click
Close
, and return to the Instructions view to continue. (See the
Use the Signature list view
 topic for more information.)
