Configure sample permissions for FactoryTalk Security users

After creating the
FactoryTalk
 security users, set up access modes for each
FactoryTalk Batch
 component to specify which users are permitted to view or perform actions. Configure security settings in the
FactoryTalk
 Administration Console. To tighten security in the client, remove the
All Users
 group from the
Full Edit
 policy setting.
To configure sample permissions for
FactoryTalk
 Security users:
  1. In the
    FactoryTalk
     Administration Console Explorer pane, navigate to
    System > Policies > Product Policies > Batch > Equipment Editor > Access Modes.
  2. Right-click
    Access Modes
    , and then select
    Properties
    . The
    Access Modes
    Properties
     dialog box opens.

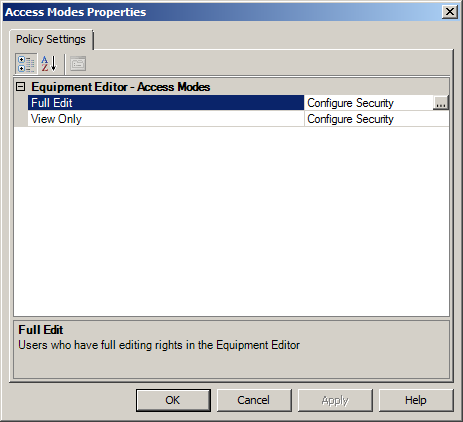

    FTB_admin_Editor_Access_Modes
  3. In the
    Full Edit
     row, select the
    Configure Security
     browse button. The
    Configure Securable Action
     dialog box opens.
  4. Select
    Add
    . The
    Select User and Computer
     dialog box opens.
  5. In the
    Filter Users
     box, select
    Show All
    .
  6. In
    Users
    , select
    ENG
    .

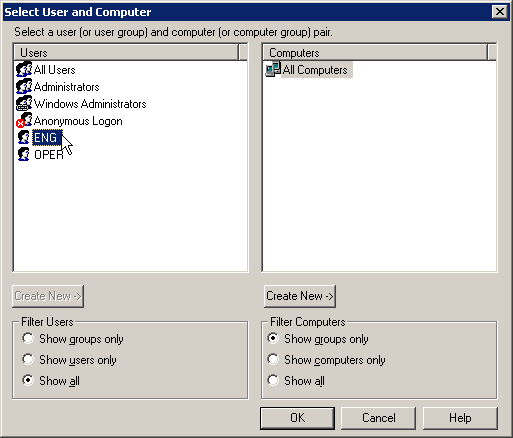

    FTB_GR_FTAC_SelectUserandComputer_ENG
  7. Select
    OK
    . The
    Configure Securable Action
     dialog box is updated, showing ENG in the list of
    Users
     with the
    Allow
     checkbox selected.

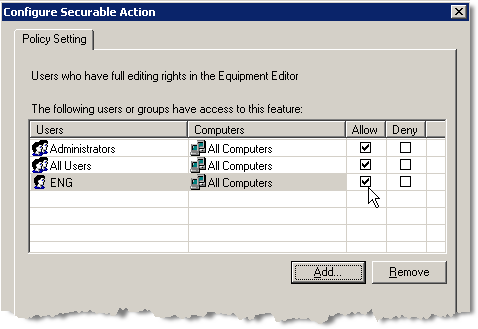

    FTB_GR_FTAC_ConfigureSecurableAction_ENGAllowed
  8. Select
    OK
     to close the
    Configure Securable Action
     dialog box.
  9. In the
    Access Modes Properties
     dialog box, select
    View Only
    .
  10. In the
    View Only
     row, select the
    Configure Security
     browse button. The
    Configure Securable Action
     dialog box opens.
  11. Select
    Add
    . The
    Select User and Computer
     dialog box opens.
  12. In the
    Filter Users
     box, select
    Show All
    .
  13. In
    Users
    , select
    OPER
    .
  14. Select
    OK
    . The
    Configure Securable Action
     dialog box is updated, showing OPER in the list of
    Users
     with the
    Allow
     checkbox selected.
  15. Select
    OK
     to close the
    Configure Securable Action
     dialog box.
  16. Select
    OK
     to close the
    Access Modes Properties
     dialog box.
See the
FactoryTalk Batch
 Administrator Guide
 for more information on security.
