Add sample FactoryTalk Security users

For the sample demonstrations file, create
FactoryTalk
 user accounts for an operator and an engineer. Create these user accounts in the
FactoryTalk
 Directory.
To add sample
FactoryTalk
 Security users:
  1. Select
    Start > Rockwell Software >
    FactoryTalk
     Administration Console

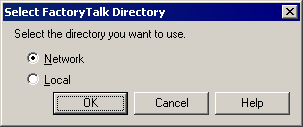

    . The
    Select
    FactoryTalk
     Directory
     dialog box opens.
    IMPORTANT:
    Administrator privileges are required to perform this procedure.
    FTB_admin_FTConsoleLogon
  2. Select
    Network
     to add this user account to the
    FactoryTalk
     Network Directory, and select
    OK
    .
  3. If not already logged on to the
    FactoryTalk
     Network Directory, the
    Log On to
    FactoryTalk
     dialog box opens. In
    User name
    , type the user name for the Administrator that was configured when the
    FactoryTalk
     Services Platform was installed.
    FTB_admin_FTConsoleLogonDir
  4. In
    Password
    , type the password for the Administrator.
  5. Verify the
    Directory
     and select
    OK
    .
    The
    FactoryTalk
     Administration Console
     window opens and displays the specified
    FactoryTalk
     Directory.
  6. Expand
    Users and Groups
    .

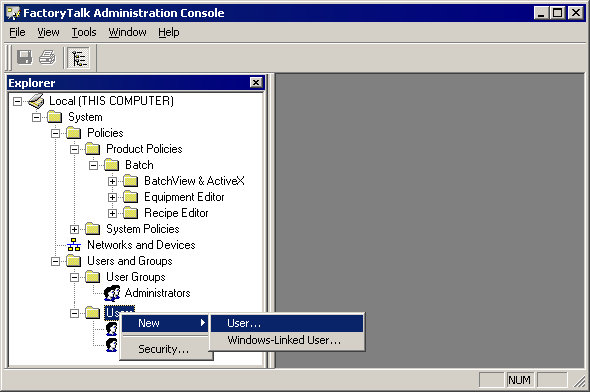

  7. Right-click the
    Users
     folder, and select
    New > User
    to create a new
    FactoryTalk
     Security user account in
    FactoryTalk
     Directory.
    FTB_admin_add_FTUser2

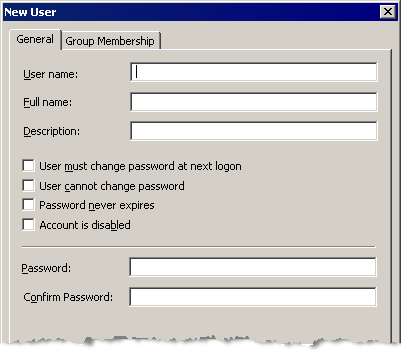

  8. The
    New User
     dialog box opens and displays the
    General
     tab. In the
    User name
     box, type
    OPER
    .
    FTB_admin_add_newUser
  9. In
    Full name
    , type
    Operator
    .
  10. In
    Password
    , type
    password
    , and confirm it by re-entering
    password
     in the
    Confirm Password
     box.
  11. Select
    Create
    .
  12. Repeat steps 7-11, but this time in the
    User Name
    field, enter
    ENG
     and in the
    Full Name
     field, enter
    Engineer
    .
  13. Keep the
    FactoryTalk
     Administration Console open to configure permissions for these
    FactoryTalk
     Security users in the next exercise.
