Control step with report data

This examples shows a control step with different types of report data.
Report Data of Type Integer, Real, or String
ePro_ViscosityTestSample_b16
<form>

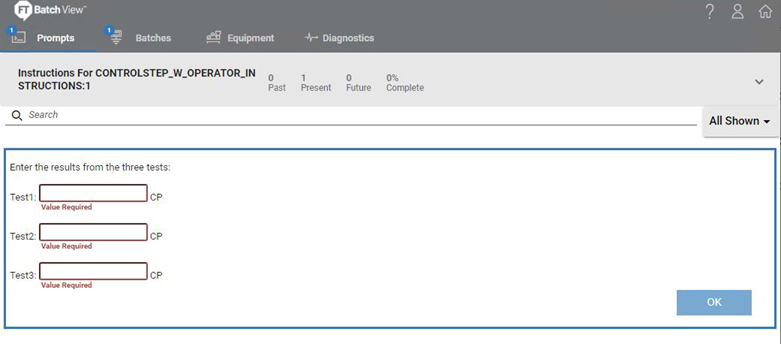

Enter the results from the three tests:
<br /><br />
Test1:

  <input name="VISCOSITY1" size="20" maxlength="20" type="TEXT" >&nbsp;<sop>VISCOSITY1.EU</sop>

<br /><br />
Test2:

  <input name="VISCOSITY2" size="20" maxlength="20" type="TEXT" >&nbsp;<sop>VISCOSITY2.EU</sop>

<br /><br />
Test3:

  <input name="VISCOSITY3" size="20" maxlength="20" type="TEXT" >&nbsp;<sop>VISCOSITY3.EU</sop>

</form>
Report Data of Type Enumeration
<form>
Enter the qualitative results of the tests: <select name="RESULTS" size="1"></select>
</form>
