Share the FactoryTalk Linx virtual backplane with RSLinx Classic

The virtual backplane is a sharable component between RSLinx Classic and FactoryTalk Linx. To share the FactoryTalk Linx virtual backplane with RSLinx Classic, use the following procedure:
  1. Start either FactoryTalk View Studio or FactoryTalk Administration Console, and click
    the Communications
    tab.

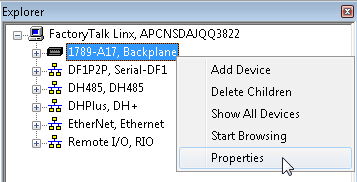

  2. On the communications tree, right-click the virtual backplane (
    1789-A17, Backplane
    ), and then click
    Properties
    .
    RSLinx Classic Linked Icons PNG FIle Template
    The
    Virtual Backplane Properties
     dialog box displays.
  3. Select
    Auto Configure
     and then click
    OK
    .

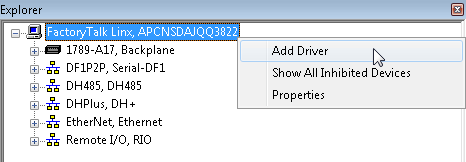

  4. Right-click
    FactoryTalk Linx
     and click
    Add Driver
    , and select the ControlNet driver (1784-PCIC(S)) from the list.
    RSLinx Classic Linked Icons PNG FIle Template
    The
    ControlNet Properties
     dialog box displays.
  5. On the
    General
    tab, verify the information in the dialog box fields is correct, and click
    OK
    .

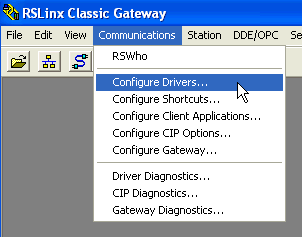

  6. Start RSLinx Classic, and click
    Communications > Configure Drivers
    . The
    Configure Drivers
     dialog box displays.
    RSLinx Classic Linked Icons PNG FIle Template

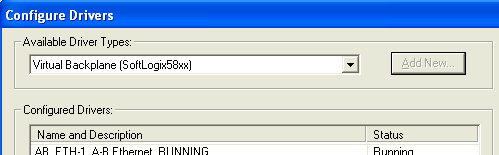

  7. From the
    Available Driver Types
    , click
    Virtual Backplane (SoftLogix58xx),
     and then click
    Add New
    .
    RSLinx Classic Linked Icons PNG FIle Template
  8. In the
    Add New RSLinx Classic Driver
     dialog box, enter a driver name or use the default name. Click
    OK
    .
  9. Click
    Close
     to close the
    Configure Drivers
    dialog box.
You now have connectivity for both FactoryTalk Linx and RSLinx Classic clients; the FactoryTalk Linx virtual backplane (1789-A17, Backplane) appears in RSLinx Classic.
If, after completing this procedure, your local workstation is not displayed, restart the host computer.
