Configure the Network Editor

Configure the Material Server with the location of the SQL database that contains the materials for the SampleDemo2 recipes.
  1. Select
    Start
    > Rockwell Software >
    Material Manager
    , and then select
    Network Editor
    . The Network Editor window opens.
  2. IMPORTANT:
    Administrator privileges are required to perform this procedure.
    Select the Material Server.

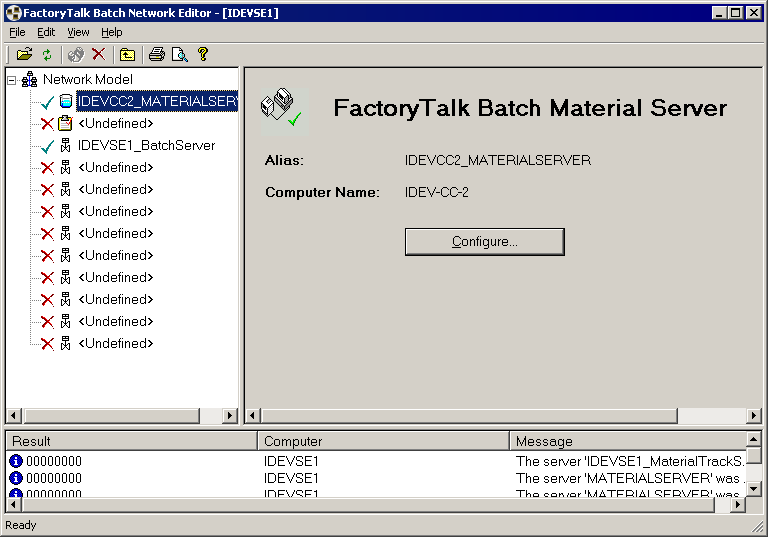

    FTBMM_GRG_network_editor1_new_B12
  3. Select
    Configure
    . The
    Configure MaterialTrack
     dialog box opens.
  4. In the
    MaterialTrack
    Database
     box, type
    SAMPLE2_MATERIALS
    , and then select
    OK
    .
  5. Select
    Synchronize
    .
  6. Select
    File
    >
    Exit
    , and then click
    Yes
     to exit the Network Editor.
