Creating material types

From the

Edit

menu, select

Material Types

. The

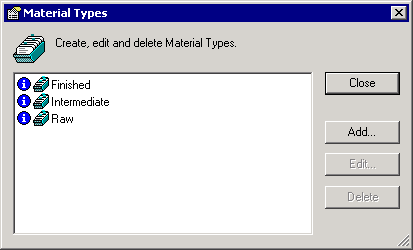

Material Types

dialog box opens.

Click the

Add

button. The

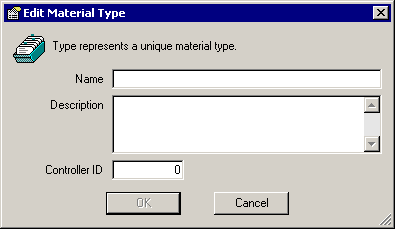

Edit Material Type

dialog box opens.

In the

Name

box, type a unique name for the selected material.

In the

Description

box, type a detailed description of the selected material.

The

Controller ID

field defaults to the next numeric value in sequence. If necessary, you can change this to a unique number, which is used for PCD phase programming. (See the

FactoryTalk Batch

PCD Programming Reference Guide

for more information.)

Click

OK

to save the new material type.
