Using a form to edit material class properties

  1. On the
    Properties
     tab, select the record row to edit, and then click the
    Edit Property
     button. The

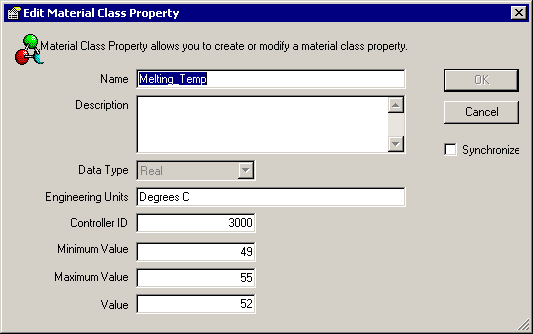

    Edit Material Class Property
     dialog box opens.
    FTBMM_ED_odin_edit_material_class_property
  2. Make the desired changes. You cannot change the
    Type
    .
    IMPORTANT:
    If you are changing a value that contains a decimal, use the Delete key to delete the value before typing a new value that contains a decimal. If you type over the old value containing the decimal, the new decimal is not recognized by the application.
  3. If you want to propagate the changes to all material and lot properties that are based on this material class, select
    Synchronize
    .
  4. Click
    OK
    .
