Devices table

Manage devices to add, edit, replace, and delete devices.

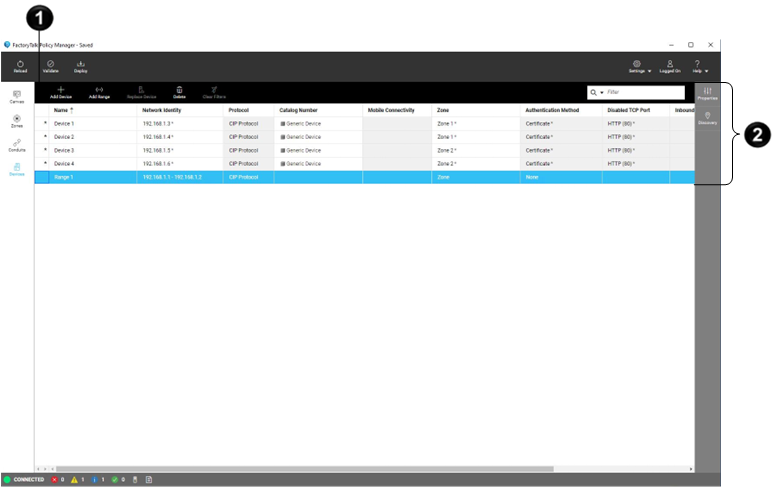

Devices table interface
The Devices table displaying device details such as IP address, protocol, and zone.
Devices table items
Item
Name
Description
1
Toolbar
Use the toolbar to interact with tables. See Table 2.
2
Table
Lists all devices in the policy model, unassigned devices, and devices to be deleted from the policy model.
IP addresses of device ranges are delimited with a hyphen
-
. IP addresses of redundant controllers are delimited with a comma
,
. Controllers configured as redundant systems appear as a single device in the security policy model.
Select not grayed-out table cells to edit values.
Select a table header title to sort elements based on the column values.
Drag a table header to change the order of columns in the table.
Filter tables by hovering-over a table header, selecting
, and entering a query or selecting checkboxes.
Devices table toolbar
Item
Description
Add Device
Adds a device to the selected zone.
Add Range
Adds a range to the selected zone.
Replace Device
Replaces the selected device.
Delete
Deletes the selected device.
Clear Filters
Clears all filters.
Filter
Filters table rows based on the specific criteria. See Filter tables.
