Integration with Logix Designer

PhaseManager

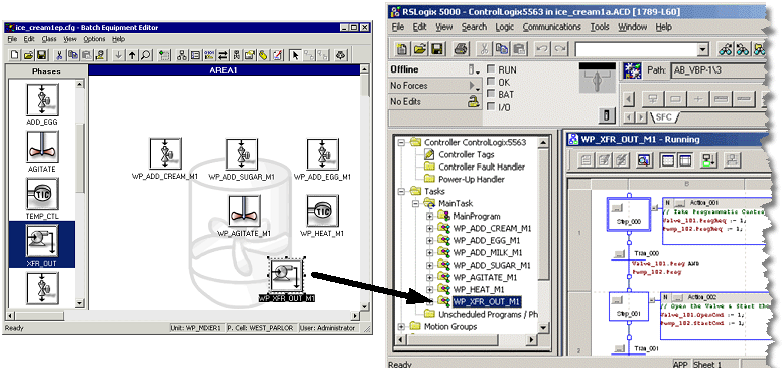

adds the ability to double-click a phase in

FactoryTalk Batch Equipment Editor

and open its corresponding equipment phase in

Logix Designer

to view and edit its phase logic.

Place the pointer over a phase that is assigned a CIP data server, the pointer changes to the

Logix Designer

equipment phase symbol, indicating to double-click to open

Logix Designer

.
