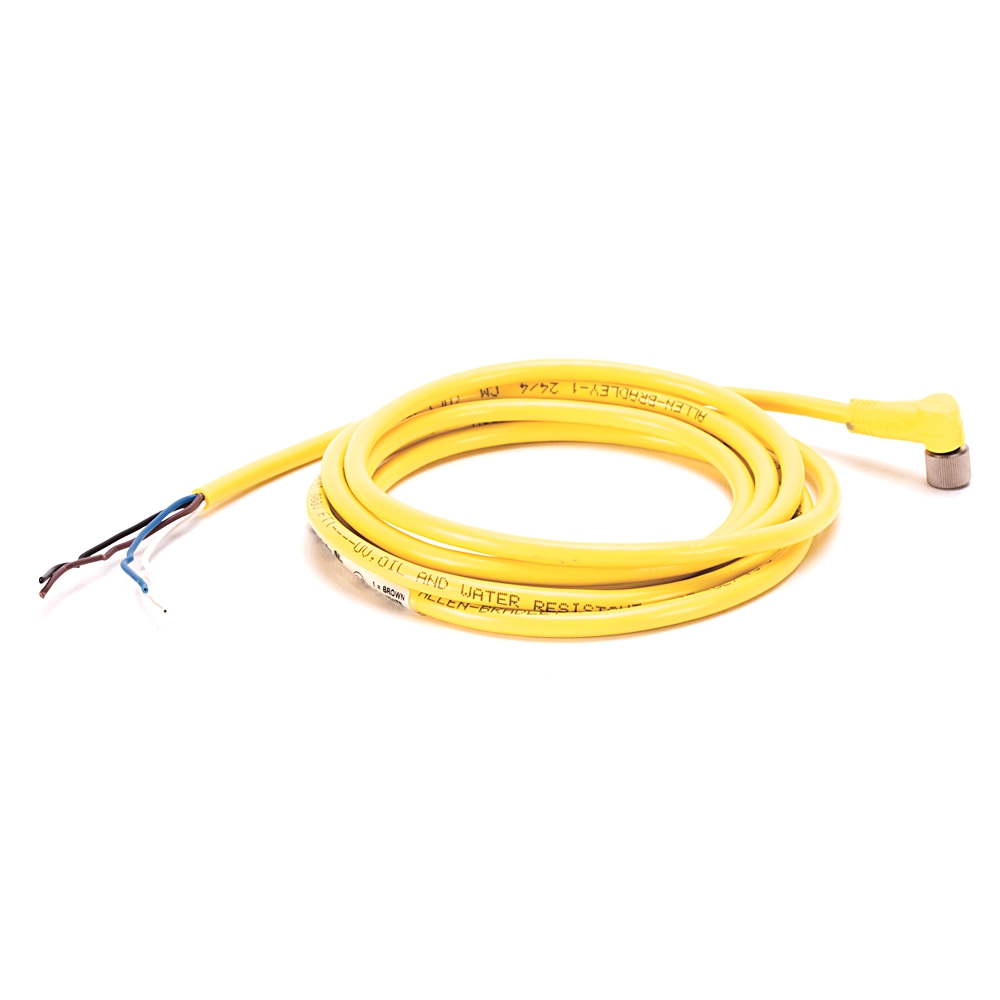

| Cable Jacket | PVC Cbl, Yellow, UnShld,PVC Cable, Yellow, 24 AWG |
|---|---|
| Male End Connector Style | Male, Straight (ext. threads),DC Micro,Straight, Male(Ext. Threads),DC Micro (M12) |
| With shield connection | False |
|---|---|
| Cable length | 1000 mm |
| Second end termination style | Straight, male (external threads) |
| Second end termination type | DC micro (M12) |
| Length, approx | Connector: 20 mm |
| Height, approx | Connector: 24.5 mm |
| Product type feature | Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Diameter | 3 core cable: 4.6 mm, 4 core cable: 4.6 mm |
| Material of contact surface | Gold |
| Material housing | Plastic |
| Type of plug-in contact, inner side | Female (bus) |
| Mounting method | Freely positionable |
| Rated current In | 4 A |
|---|---|
| List of degrees of protection (IP), mounted | IP65/IP67 |
| Assembly rating | NonLED: 60V AC/75V DC @ 4A |
| Cable rating | UL CM AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 105°C @ 300V FT1 |
| Degree of protection (IP), mounted | IP67 |
|---|---|
| Number of poles | 4 |
| Second end conductors | Same as first end |
| First end connector style | Female, right angle (internal threads) |
| Cable type | PVC cable, yellow, unshielded, 24 AWG |
| Material | Coupling nut: Nickel-plated Brass Connector: molded oil-resistant PUR Contact: Gold over Nickel-plated Brass |
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 4.445 |
| Lead Time | 5 |
| Dimension Width | 14.859 |
| Dimension Length | 17.018 |
| Stock Status | NON_STOCKED |
| Weight | 58.967 |
| Weight Unit | G |
| Dimension Unit | CM |
| Drawings | |
|---|---|
| Assembly Drawing (PDF) | Download (PDF) |
| 2-Dimensional Drawing (PDF) | Download (PDF) |
| 3-Dimensional STEP model (STP) | Download (ZIP) |
| Product Drawing | Drawing (DXF) |
| Drawings |
|---|
| Assembly Drawing (PDF) Download (PDF) |
| 2-Dimensional Drawing (PDF) Download (PDF) |
| 3-Dimensional STEP model (STP) Download (ZIP) |
| Product Drawing Drawing (DXF) |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
