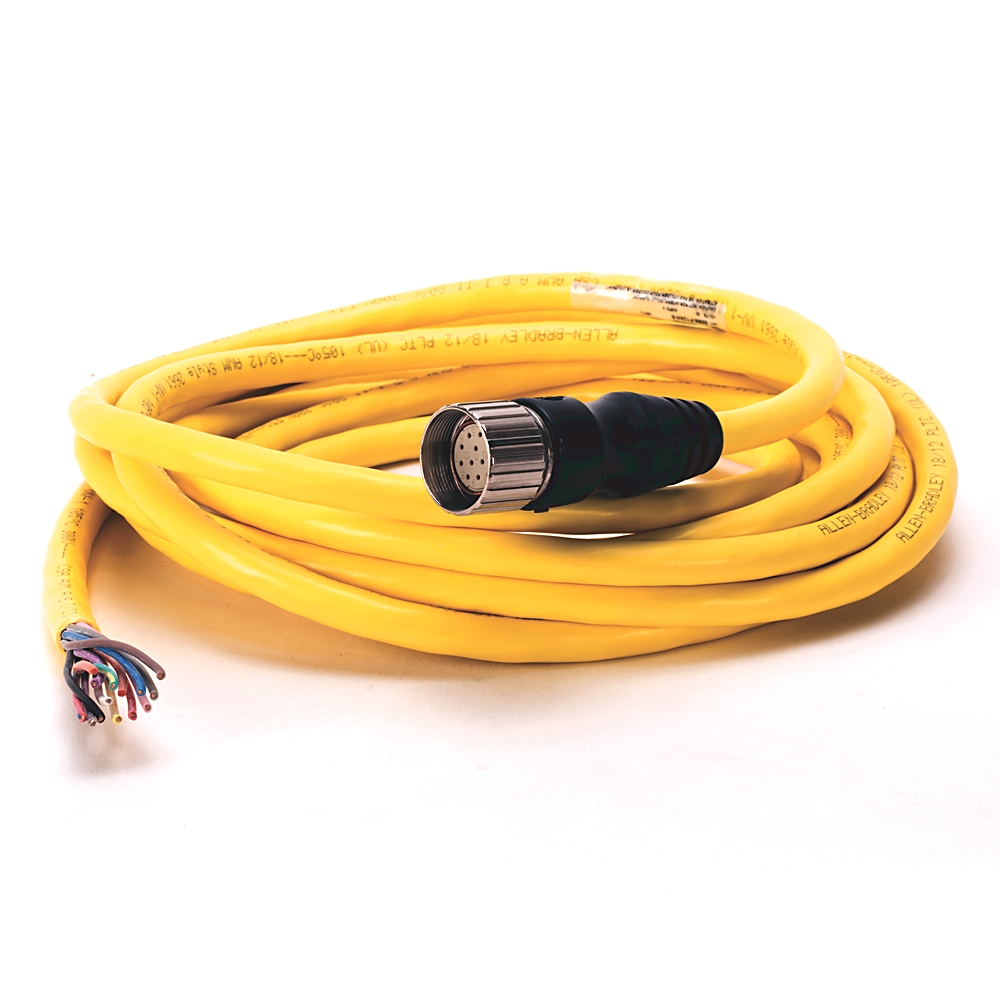

| Cable Jacket | PVC Cbl, Yellow, UnShld,PVC Cable, Ylw, 18 AWG, Twist |
|---|---|
| Female End Connector Style | Female, Straight (int threads),Female, Straight (Int Threads) |
| Male End Connector Style | No Connector,Cable,No Connector,Cable - IEC Stndrd Color Code |
| Male Pin Count | 12-pin |
| Second End Conductors | Same as First End |
| Wire Size | 18 AWG with one twisted pair |
| With shield connection | False |
|---|---|
| Cable length | 50000 mm |
| Number of conductors | 12 |
| Connector type | 12-pin |
| Second end termination style | No connector |
| Second end termination type | Cable - IEC standard color code |
| Diameter, approx | Connector: 26.2 mm |
| Length, approx | Connector: 85 mm |
| Product type feature | Standard- Epoxy coated Zinc for DC micro, AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Diameter | Cable: 10.8 mm |
| Material of contact surface | Gold |
| Material housing | Plastic |
| Type of plug-in contact, inner side | Female (bus) |
| Mounting method | Freely positionable |
| Rated current In | 6 A |
|---|---|
| List of degrees of protection (IP), mounted | IP68/IP67 |
| Assembly rating | 6 A |
| Cable rating | 300V |
| Degree of protection (IP), mounted | IP68 |
|---|---|
| Operating temperature | -20 °C |
| Number of poles | 12 |
| Second end conductors | Same as first end |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| Cable type | PVC cable, yellow, unshielded, 18 AWG, with one twisted pair |
| Material | Coupling nut: Nickel-plated Brass, Connector: molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass |
| Bend radius | 10 x diam |
