871TM-D10ED30-D5

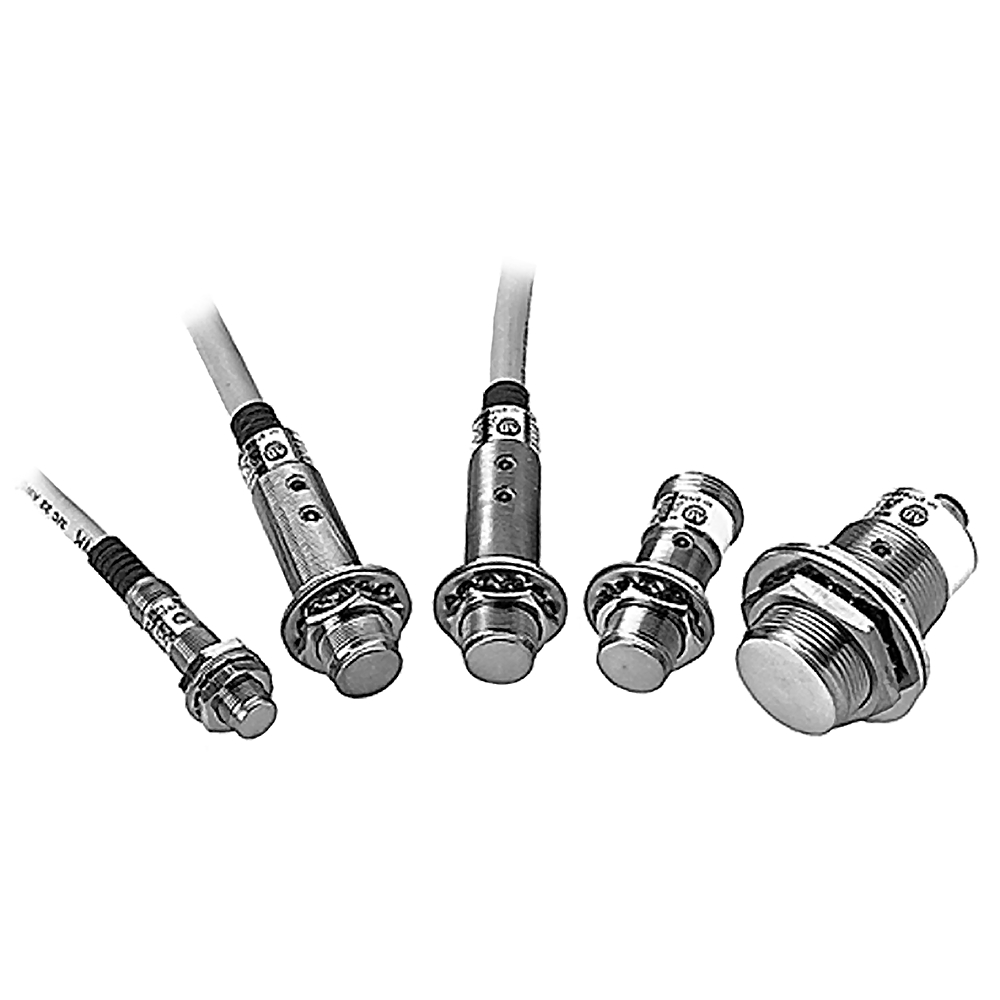

Metal Face Inductive Sensor
Rockwell Automation announces that as of June 03, 2019, the Metal Face Inductive Sensor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
June 03, 2019
Replacement Category:
No planned RA replacement
Rockwell Automation announces that as of June 03, 2019, the Metal Face Inductive Sensor will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
June 03, 2019
Replacement Category:
No planned RA replacement
| Nominal Sensing Distance |
10 mm Sensing Distance
|
|---|---|
| Output |
Progmable DeviceNet
|
| Diameter sensor |
30 mm
|
|---|---|
| Nominal sensing distance |
10 mm
|
| Degree of protection (NEMA) |
13
|
| Shock |
30 G (1.06 oz), 11 ms
|
| Vibration |
55 Hz, 1 mm Alitude, 3 planes
|
| Enclosure type rating |
NEMA 1, 2, 3, 3R, 4, 4X, 6, 6P, 12, IP67 (IEC529) all models, 1200 psi washdown, toughlink and micro connector versions are also rated IP69K (IEC 529)
|
| Voltage type |
DC
|
|---|---|
| Type of electric connection |
Plug-in connection
|
| Connection type |
Micro QD 5 pin DC
|
| Connection style |
Cable: 2 m length, A2 - 3-conductor PVC, C2 - 3-conductor #22 AWG-toughlink, H2 - 3-conductor #18 AWG toughlink, Quick disconnect: 4 pin mini style, 4 pin micro style
|
| Material housing |
Metal
|
| Type of actuation |
Metallic Target
|
| Housing material |
Stainless steel face and barrel
|
| Load current |
≤25 mA
|
|---|---|
| Hysteresis |
10% typical
|
| Leakage current |
≤10 µA
|
| Voltage drop |
≤1V DC @ 200mA
|
| Special feature |
Not applicable
|
| Output configuration |
Progmable deviceNet
|
| Repeatability |
≤10% at constant temperature
|
| Correction factor |
Steel: 1
|
| Status indicator |
Red: Output energized
|
| Protection type |
False pulse, transient noise, reverse polarity, short circuit (trigger at 340 mA typical), overload
|
| Capacitive load |
≤1 µF
|
| Product type |
Metal face
|
| Output |
Normally open
|
| Description |
Metal face inductive sensor
|
| Operating temperature |
-25 °C
|
|---|
| Type | Resource | Publication |
|---|---|---|
| Technical Data | prox-td001_-en-p | PROX-TD001 |
| User Manual | 871tm-um001_-en-p | 871TM-UM001 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- UL Listed
This product was certified with the above certifications as of 2025-05-16. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Nominal Sensing Distance |
10 mm Sensing Distance
|
|---|---|
| Output |
Progmable DeviceNet
|
| Diameter sensor |
30 mm
|
|---|---|
| Nominal sensing distance |
10 mm
|
| Degree of protection (NEMA) |
13
|
| Shock |
30 G (1.06 oz), 11 ms
|
| Vibration |
55 Hz, 1 mm Alitude, 3 planes
|
| Enclosure type rating |
NEMA 1, 2, 3, 3R, 4, 4X, 6, 6P, 12, IP67 (IEC529) all models, 1200 psi washdown, toughlink and micro connector versions are also rated IP69K (IEC 529)
|
| Voltage type |
DC
|
|---|---|
| Type of electric connection |
Plug-in connection
|
| Connection type |
Micro QD 5 pin DC
|
| Connection style |
Cable: 2 m length, A2 - 3-conductor PVC, C2 - 3-conductor #22 AWG-toughlink, H2 - 3-conductor #18 AWG toughlink, Quick disconnect: 4 pin mini style, 4 pin micro style
|
| Material housing |
Metal
|
| Type of actuation |
Metallic Target
|
| Housing material |
Stainless steel face and barrel
|
| Load current |
≤25 mA
|
|---|---|
| Hysteresis |
10% typical
|
| Leakage current |
≤10 µA
|
| Voltage drop |
≤1V DC @ 200mA
|
| Special feature |
Not applicable
|
| Output configuration |
Progmable deviceNet
|
| Repeatability |
≤10% at constant temperature
|
| Correction factor |
Steel: 1
|
| Status indicator |
Red: Output energized
|
| Protection type |
False pulse, transient noise, reverse polarity, short circuit (trigger at 340 mA typical), overload
|
| Capacitive load |
≤1 µF
|
| Product type |
Metal face
|
| Output |
Normally open
|
| Description |
Metal face inductive sensor
|
| Operating temperature |
-25 °C
|
|---|
Documents
|
prox-td001_-en-p
Technical Data
PROX-TD001 |
|
871tm-um001_-en-p
User Manual
871TM-UM001 |
| Type | Resource | Publication |
|---|---|---|
| Technical Data | prox-td001_-en-p | PROX-TD001 |
| User Manual | 871tm-um001_-en-p | 871TM-UM001 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Certifications
- UL Listed
This product was certified with the above certifications as of 2025-05-16. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
