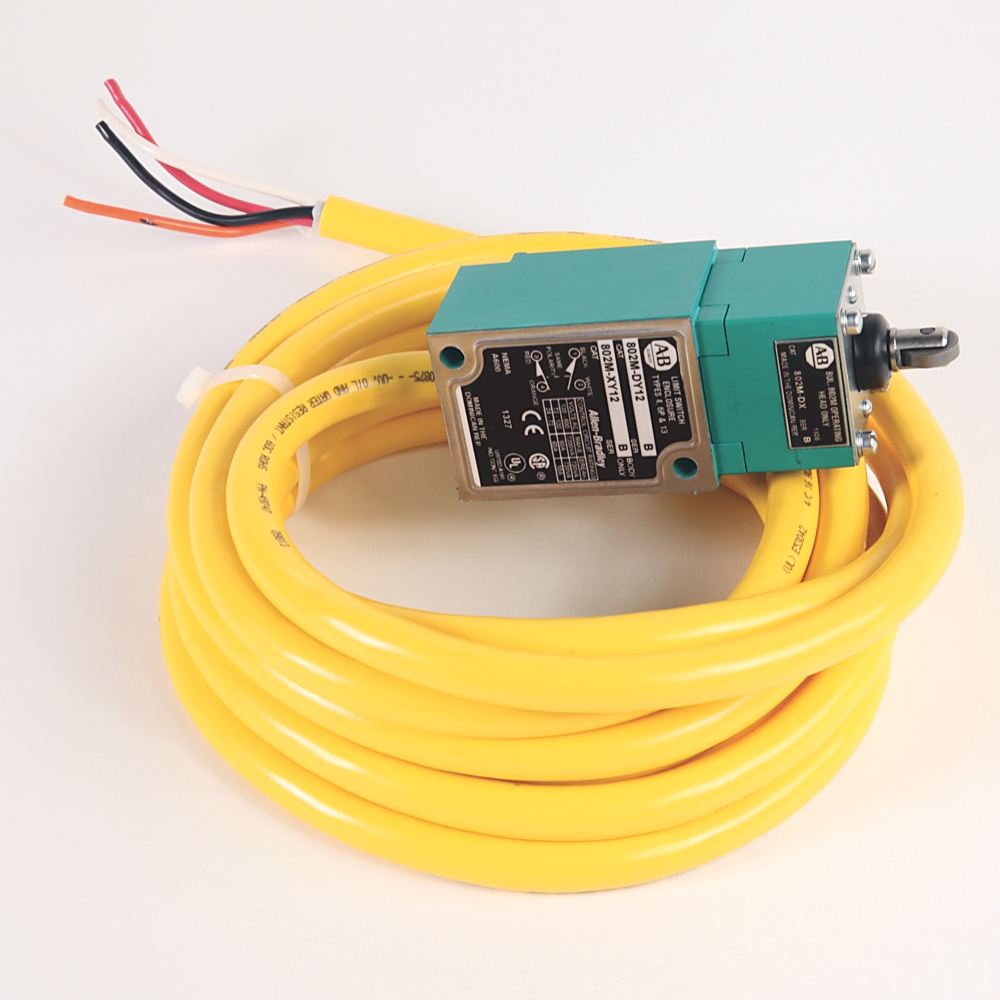

| Suitable for safety functions |
True
|
|---|---|
| Degree of protection (NEMA) |
13
|
| Degree of protection (IP) |
IP67
|
| List of degrees of protection (NEMA) |
1, 4, 6P, 13
|
| Special feature |
Complete switch
|
| Width |
Top push types: 41.3 mm
|
| Height |
Side push types: 86.5 mm
|
| Force to operate contacts, max |
Top push roller, 2 circuit: 14.7 N
|
| Travel to operate contacts, max |
Top push roller, 2 circuit: 1.45 mm
|
| Travel to reset contacts, max |
Top push roller, 2 circuit: 0.56 mm
|
| Travel, max |
Top push roller, 2 circuit: 5.26 mm
|
| Actuation type |
Top push roller
|
| Connection type |
5 ft cable
|
| Switching function latching |
False
|
| Construction type housing |
Cuboid
|
| With status indication |
True
|
|---|---|
| Number of circuits |
2 circuit
|
| Indicating lights |
No indication light
|
| Continuous carrying current |
2 circuits same polarity: maximum 5 A per pole @ 24V DC
|
| Contact rating |
2 circuits same polarity: maximum 1.1 A per pole @ 24V DC
|
| Contact rating, break |
2 circuits same polarity: maximum 720VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
|
| Contact rating, make |
2 circuits same polarity: maximum 7200VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
|
| Output electronic |
False
|
| Ambient temperature during operating |
0 °C
|
|---|---|
| NEMA rating designation |
2 circuits same polarity: A600/AC-15
|
| Length |
Top push types: 109.8 mm
|
|---|
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Suitable for safety functions |
True
|
|---|---|
| Degree of protection (NEMA) |
13
|
| Degree of protection (IP) |
IP67
|
| List of degrees of protection (NEMA) |
1, 4, 6P, 13
|
| Special feature |
Complete switch
|
| Width |
Top push types: 41.3 mm
|
| Height |
Side push types: 86.5 mm
|
| Force to operate contacts, max |
Top push roller, 2 circuit: 14.7 N
|
| Travel to operate contacts, max |
Top push roller, 2 circuit: 1.45 mm
|
| Travel to reset contacts, max |
Top push roller, 2 circuit: 0.56 mm
|
| Travel, max |
Top push roller, 2 circuit: 5.26 mm
|
| Actuation type |
Top push roller
|
| Connection type |
5 ft cable
|
| Switching function latching |
False
|
| Construction type housing |
Cuboid
|
| With status indication |
True
|
|---|---|
| Number of circuits |
2 circuit
|
| Indicating lights |
No indication light
|
| Continuous carrying current |
2 circuits same polarity: maximum 5 A per pole @ 24V DC
|
| Contact rating |
2 circuits same polarity: maximum 1.1 A per pole @ 24V DC
|
| Contact rating, break |
2 circuits same polarity: maximum 720VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
|
| Contact rating, make |
2 circuits same polarity: maximum 7200VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
|
| Output electronic |
False
|
| Ambient temperature during operating |
0 °C
|
|---|---|
| NEMA rating designation |
2 circuits same polarity: A600/AC-15
|
| Length |
Top push types: 109.8 mm
|
|---|
