800t-pcl416

30mm Pilot Light 800T PB

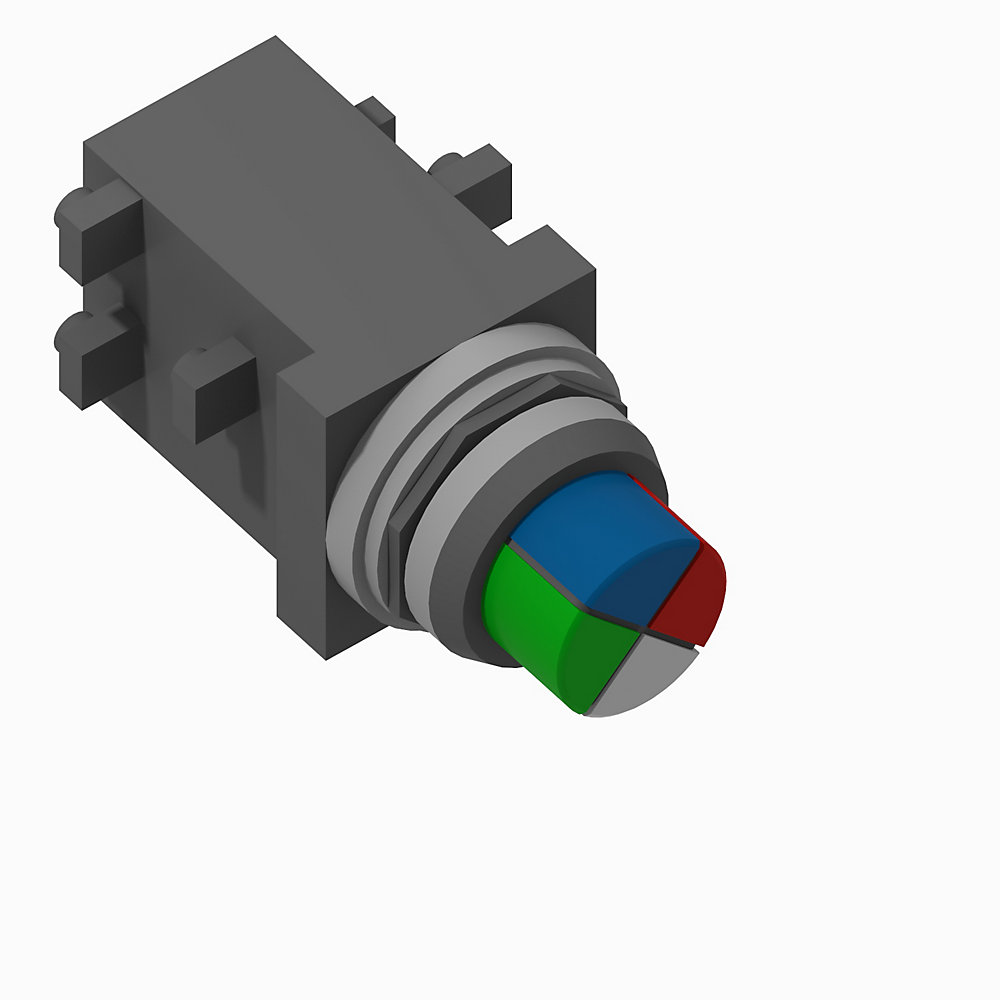

Name: 30mm Pilot Light 800T PB
Brand: Rockwell Automation
SKU: 800t-pcl416

Serial #:

Lifecycle status: Active

Description

30.5mm Cluster Pilot Light, 4 Unit Cluster-LED, Transformer, 120V AC 50/60 Hz, Std. Unit

Unique Product Identifier	800t-pcl416
UPC	191326387521
Estimated Lead Time	5 days
Country of Origin	Mexico

Number of indicator lights	4
Illumination lamp type	LED
Operator construction/material	Metal
Illumination module type	Transformer
Illumination module input voltage	120V AC/DC
Suitable for illumination	True

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator type	Pilot light, cluster type
Vibration	10 G maximum
Shock	100 G (no damage)
Illumination module termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Terminations with finger safe covers	False
Operator cap 2 color	Red
Operator cap 4 color	Green
Operator cap/button shape	Round
Operator cap 1 color	Blue
Operator cap 3 color	Clear
Operator cap type	Fresnal
Operator cap/button material	Plastic

Operating temperature	-25 °C
Hazardous location rating	Class I, div. 2
Humidity	50 %
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Push my Buttons Podcast	--
Repair Parts List	--
Product Cutsheet	--
Selection Guide	800T-BR012

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
UL Listed
UL Listed Hazardous
CE
China CCC

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800t-pcl416
UPC	191326387521
Estimated Lead Time	5 days
Country of Origin	Mexico

Technical Specifications

Number of indicator lights	4
Illumination lamp type	LED
Operator construction/material	Metal
Illumination module type	Transformer
Illumination module input voltage	120V AC/DC
Suitable for illumination	True

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator type	Pilot light, cluster type
Vibration	10 G maximum
Shock	100 G (no damage)
Illumination module termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Terminations with finger safe covers	False
Operator cap 2 color	Red
Operator cap 4 color	Green
Operator cap/button shape	Round
Operator cap 1 color	Blue
Operator cap 3 color	Clear
Operator cap type	Fresnal
Operator cap/button material	Plastic

Operating temperature	-25 °C
Hazardous location rating	Class I, div. 2
Humidity	50 %
Storage temperature	-40 °C

Drawings

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

Documents

Push my Buttons Podcast General
--

Repair Parts List General
--

Product Cutsheet General
--

Selection Guide General
800T-BR012

800-td009_-en-p Technical Data
800-TD009

General	Publication
Push my Buttons Podcast	--
Repair Parts List	--
Product Cutsheet	--
Selection Guide	800T-BR012
Technical Data	Publication
800-td009_-en-p	800-TD009
