800H-LPH24M

Type 7_9 Pilot Light 800H PB

Name: Type 7_9 Pilot Light 800H PB
Brand: Rockwell Automation
SKU: 800H-LPH24M

Serial #:

Lifecycle status: Active

Description

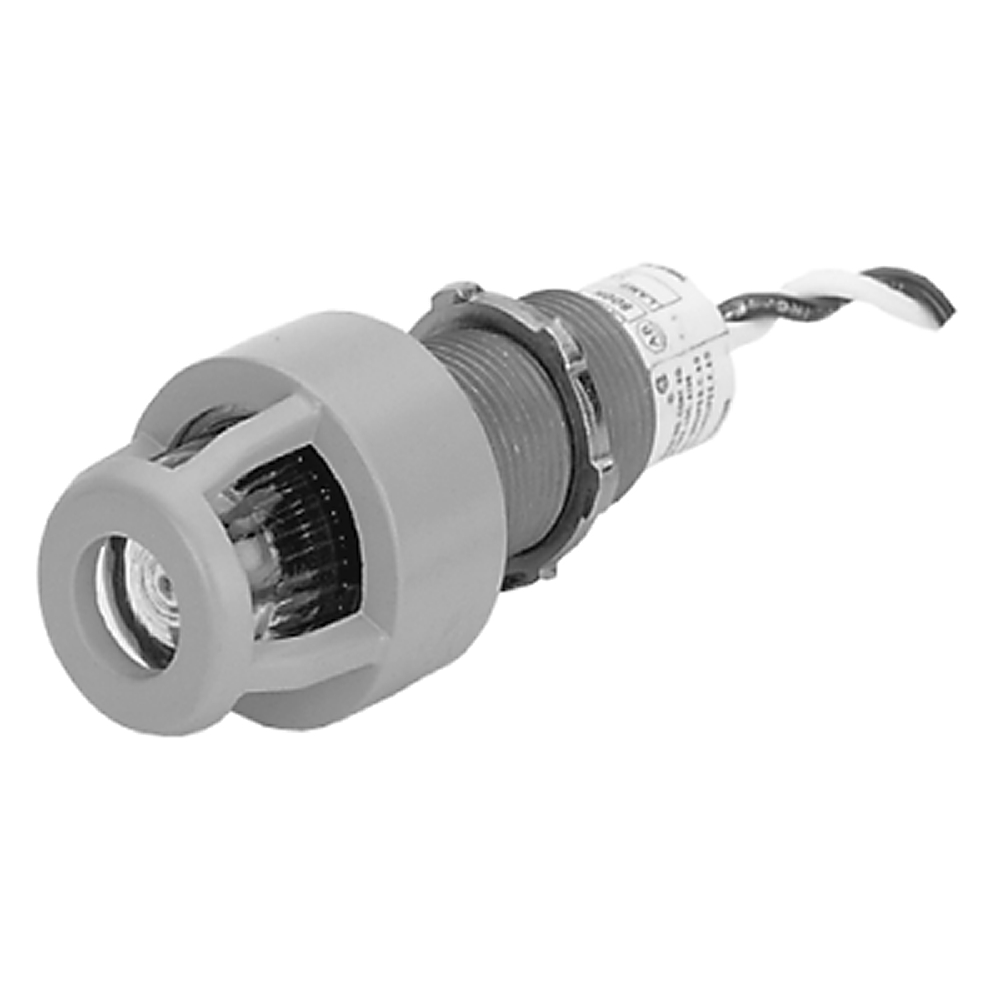

Hazardous Location Type 7&9 Pilot Light, Standard Barrel Length, LED, Multi-Color Pack, 24V AC/DC

Bull Number Modifier	No Guards - on Terminals
Illumination Option Selection	Pilot Light with LED LA
Power Module Selection	Pigtail Full Voltage Type
Type	Type 7_9 Pilot Light

With front ring	False
Construction type lens	Round
Lens color	Multi-color insert packet (amber, blue, green, red, white)
Type of lens	High
Finger-safe guards	No guards on terminals

Type of electric connection	Screw connection
Vibration	10...2000 Hz, 1.52 mm displacement (peak-to-peak) 10 G maximum
Shock	1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G
Terminal screw torque	6 in-lb
Wire gauge	18 AWG
Mechanical life operations	250000 minimum
Degree of protection	Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Overview

Technical Specifications

Bull Number Modifier	No Guards - on Terminals
Illumination Option Selection	Pilot Light with LED LA
Power Module Selection	Pigtail Full Voltage Type
Type	Type 7_9 Pilot Light

With front ring	False
Construction type lens	Round
Lens color	Multi-color insert packet (amber, blue, green, red, white)
Type of lens	High
Finger-safe guards	No guards on terminals

Type of electric connection	Screw connection
Vibration	10...2000 Hz, 1.52 mm displacement (peak-to-peak) 10 G maximum
Shock	1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G
Terminal screw torque	6 in-lb
Wire gauge	18 AWG
Mechanical life operations	250000 minimum
Degree of protection	Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)

Documents

Product Cutsheet General
--

Technical Document General
800-TD011
