800h-br2d1

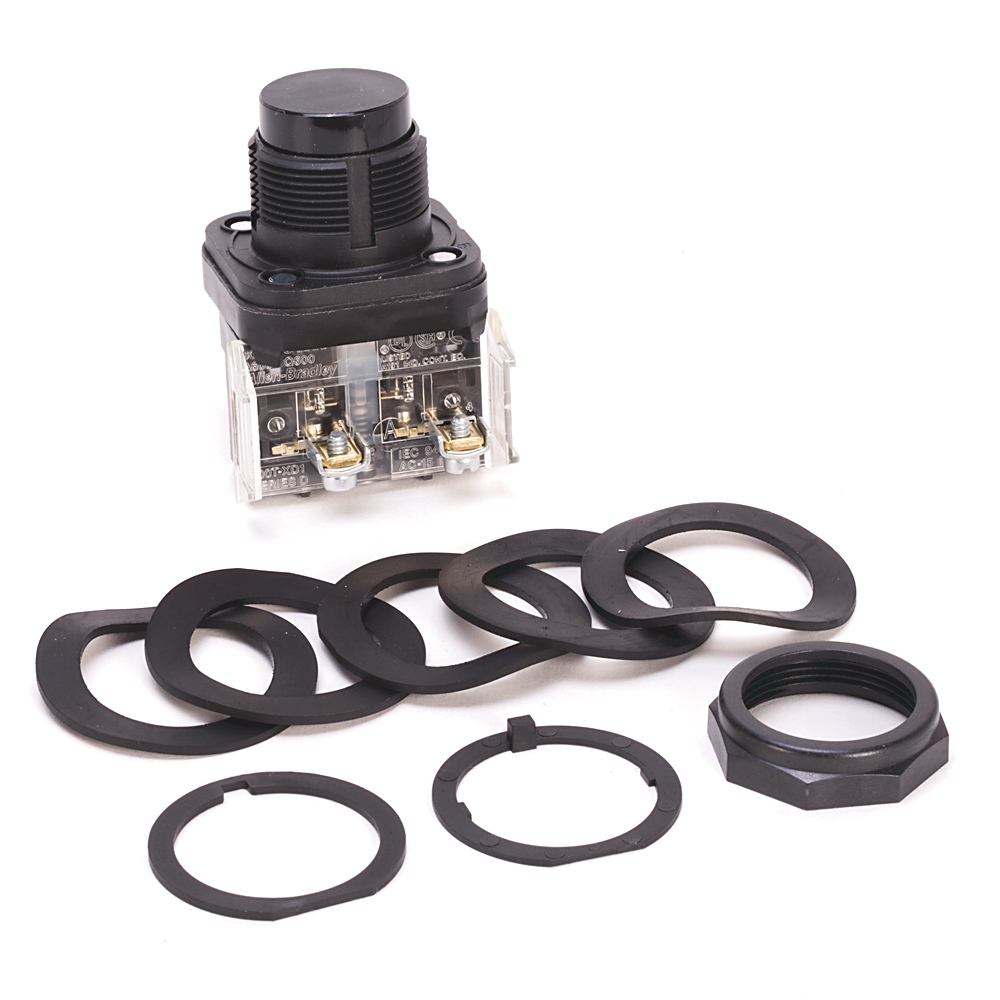

30mm Momentary Push Button 800H PB

Serial #:

Lifecycle status: Active

Type	30mm Momentary Push Button

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Extended head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Operator mechanical design life (cycles, min.)	1.0E7
Operator cap color	Black
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Operator function	Momentary contact
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block electrical design life (cycles, at max. load)	1000000
Operator type	Push button
Contact block configuration	1 NO, standard contact block (800T-XD1)
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Plastic

General	Publication
Product Cutsheet	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

American Bureau of Shippin

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Technical Specifications

Type	30mm Momentary Push Button

Suitable for illumination	False
Operator cap/button shape	Round
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Extended head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Operator mechanical design life (cycles, min.)	1.0E7
Operator cap color	Black
Enclosure compatibility (NEMA type)	1, 4, 4X, 12, 13
Operator function	Momentary contact
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block electrical design life (cycles, at max. load)	1000000
Operator type	Push button
Contact block configuration	1 NO, standard contact block (800T-XD1)
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Plastic
