800T-T3P767XX

30 mm Tgl Sw 800T PB

Name: 30 mm Tgl Sw 800T PB
Brand: Rockwell Automation
SKU: 800T-T3P767XX

Serial #:

Lifecycle status: Active

Description

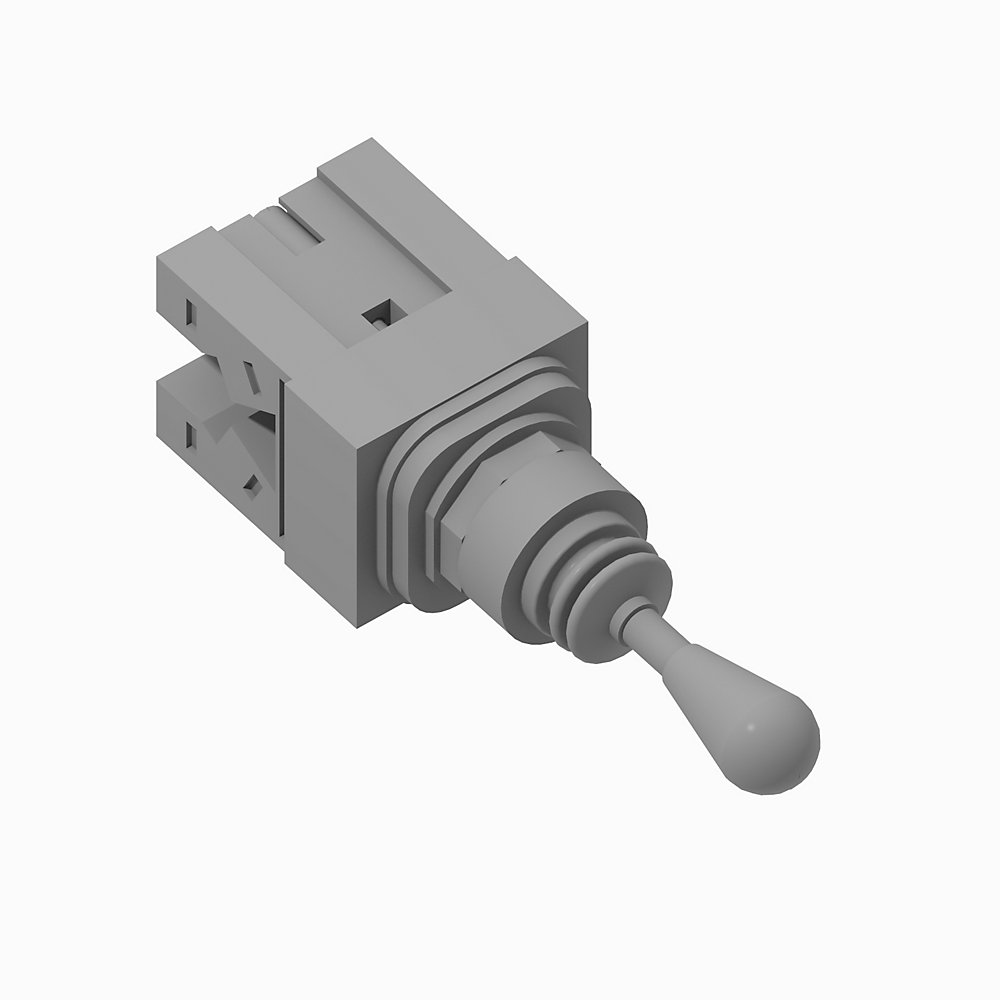

30.5mm Type 4/13 Toggle Switch, Three Way Toggle, Up&Down-Spring Rtn,Right-Maint., 1 N.C. Stackable Sealed Switch & 1 N.O. - 1 N.C. Stackable Sealed Switch

Unique Product Identifier	800T-T3P767XX
UPC	781180407307
Estimated Lead Time	29 days
Standard Warranty Duration	1 year See details
Country of Origin	Japan
EU Importer Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium
EU Authorized Representative Address	Rockwell Automation N.V Pegasus Park De Kleetlaan 12A 1831 Diegem Belgium

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Number of switch positions	3
Terminations with finger safe covers	False
Centre mounting, hole diameter	30.5 mm
Operator mechanical design life (cycles, min.)	200000
Vibration	Custom configuration - consult factory
Contact block termination tightening torque	Custom configuration - consult factory
Shock	25 G (contact fragility)/100 G (no damage)
Position 2 contact block	1 NO, 1 NC, stackable sealed switch contact block (800T-XAY)
Position 1 contact block	1 NC, stackable sealed switch contact block (800T-XD2Y)
Position 3 contact block	No block this position
Position 4 contact block	No block this position
Operator function	Up-spring return, right-maintained, down-spring return
Contact block termination wire range	Custom configuration - consult factory
Suitable for illumination	False
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator type	Toggle switch
Contact block electrical design life (cycles, at max. load)	Custom configuration - consult factory

Operating temperature	-25 °C
Humidity	50 to 95%
Storage temperature	-40 °C
Hazardous location rating	Custom configuration - consult factory

Operator cap/button material	Metal/plastic
Operator construction/material	Metal
Operator cap type	Lever arm with conical cap
Termination style	Screw
Operator cap color	Black

Contact block thermal current rating	Custom configuration - consult factory
Contact block utilization category (AC)	Custom configuration - consult factory
Contact block utilization category (DC)	Custom configuration - consult factory
Contact block operational voltage, max	Custom configuration - consult factory

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Repair Parts List	--
Selection Guide	800T-BR012
Product Cutsheet	--
Specification	800-TD009
Technical Document	800-TD009
Push my Buttons Podcast	--
