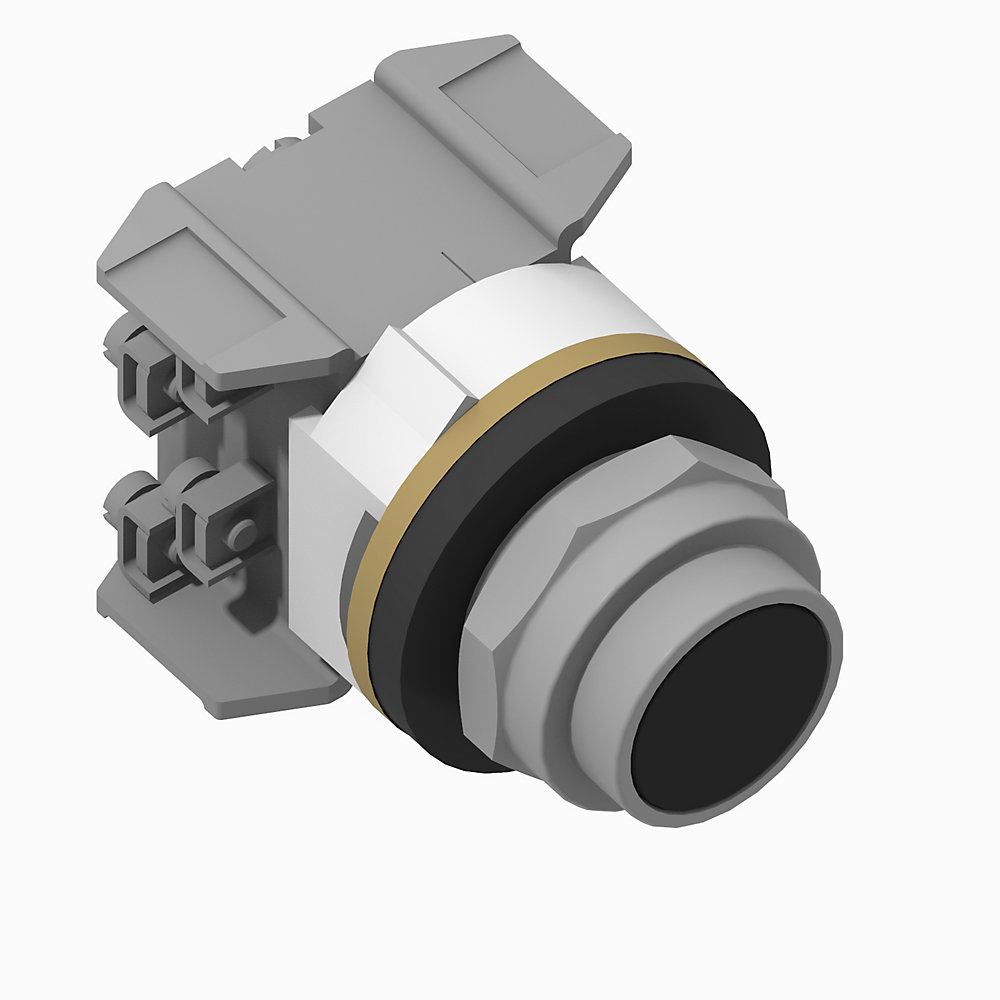

| Product Type | 30mm Selector Push Button |
|---|
| Suitable for illumination | False |
|---|---|
| Contact block configuration | Custom configuration - consult factory |
| Contact block thermal current rating | Custom configuration - consult factory |
| Contact block utilization category (AC) | Custom configuration - consult factory |
| Contact block utilization category (DC) | Custom configuration - consult factory |
| Contact block operational voltage, max | Custom configuration - consult factory |
| Position 2 contact block | 1 NO, 1 NC, standard contact block (800T-XA) |
| Position 1 contact block | 1 NCLB, 1 NO, standard contact block (800T-XA1) |
| Position 3 contact block | No block this position |
| Position 4 contact block | No block this position |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Operator mechanical design life (cycles, min.) | 200000 None |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator type | Selector push button |
| Contact block termination tightening torque | Custom configuration - consult factory |
| Contact block electrical design life (cycles, at max. load) | Custom configuration - consult factory |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | Custom configuration - consult factory |
| Contact block termination wire range | Custom configuration - consult factory |
| Colour button | Black |
|---|---|
| Terminations with finger safe covers | False |
| Operator cap/button material | Plastic |
| Operator construction/material | Metal |
| Operator cap type | Flush head |
| Operator cam code | D |
| Cam options | Flush button with D cam |
| Number of switch positions | 2 None |
| Operator cap/button shape | Round |
| Operating temperature | -25 °C |
|---|---|
| Hazardous location rating | Custom configuration - consult factory |
| Humidity | 50 % |
| Storage temperature | -40 °C |
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
Sales Info
| Repairable | NOT_REPAIRABLE |
| Preferred Availability | false |
| Quick Turnaround | false |
| Dimension Height | 5.588 |
| Lead Time | 15 |
| Dimension Width | 5.893 |
| Dimension Length | 9.093 |
| Stock Status | NON_STOCKED |
| Weight | 0.159 |
| Weight Unit | KG |
| Dimension Unit | CM |
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
| General | Repair Parts List | -- |
