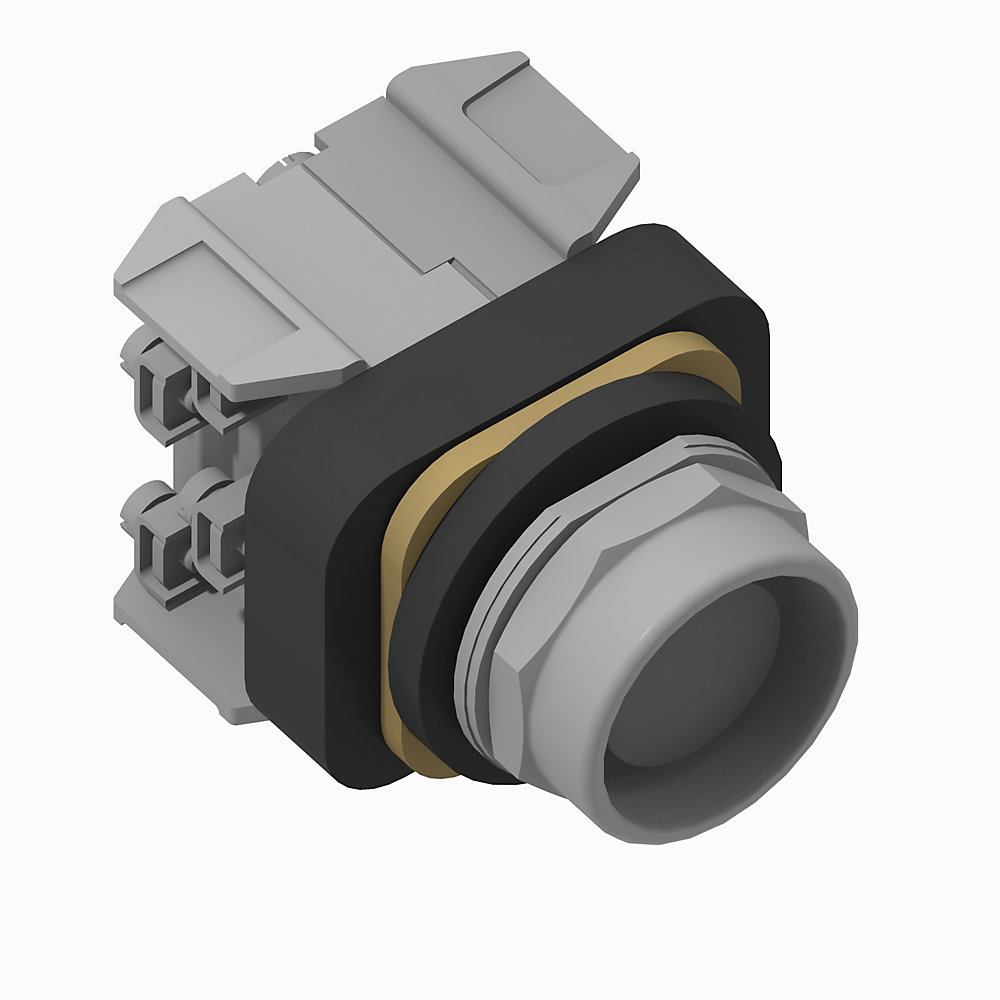

800T-FXQ10XA2
30mm Push-Pull Device 800T PB
Rockwell Automation announces that as of April 30, 2025, the 30mm Push-Pull Device 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
April 30, 2025
Replacement Category:
Direct Replacement
Rockwell Automation announces that as of April 30, 2025, the 30mm Push-Pull Device 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)
Discontinued Date:
April 30, 2025
Replacement Category:
Direct Replacement
| Suitable for illumination | True |
|---|---|
| Operator cap/button shape | Round |
| Illumination lamp type | Incandescent |
| Illumination module type | Full voltage |
| Operator cap/button material | Plastic with Aluminum spinover |
| Contact block thermal current rating | 10 A |
| Illumination module input voltage | 120V AC/DC |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Mushroom Head |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator cap color | No cap |
| Operator cap/button size | 40 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator cap text/symbol | N/A |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Operator function | 2-Position |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator type | Push-Pull Unit |
| Operator special function | Maintained |
| Contact block configuration | 2 NO, standard contact block (800T-XA2) |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
| Operator construction/material | Metal |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| 2D Dimension Drawing (PDF) | Download (PDF) |
| Product Drawing | Drawing (DWG) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
| 2D Dimension Drawing (PDF) Download (PDF) |
| Product Drawing Drawing (DWG) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Repair Parts List | -- |
| General | Push my Buttons Podcast | -- |
| General | Selection Guide | 800T-BR012 |
| General | Product Cutsheet | -- |
| Technical Data | 800-td009_-en-p | 800-TD009 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- Eurasion Economic Community
- China CCC
- CE
- CSA Listed
- CSA Listed Hazardous
- UL Listed
This product was certified with the above certifications as of 2025-07-27. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Suitable for illumination | True |
|---|---|
| Operator cap/button shape | Round |
| Illumination lamp type | Incandescent |
| Illumination module type | Full voltage |
| Operator cap/button material | Plastic with Aluminum spinover |
| Contact block thermal current rating | 10 A |
| Illumination module input voltage | 120V AC/DC |
| Contact block utilization category (AC) | A600, AC-15 |
| Contact block utilization category (DC) | Q600, DC-13 |
| Contact block operational voltage, max | 600V AC @ 600V DC |
| Operator cap type | Mushroom Head |
| Hole diameter | 30.5 mm |
|---|---|
| Type of electric connection | Screw connection |
| Terminations with finger safe covers | False |
| Operator mechanical design life (cycles, min.) | 250000 |
| Operator cap color | No cap |
| Operator cap/button size | 40 mm |
| Enclosure compatibility (NEMA type) | 1, 4, 12, 13 |
| Operator cap text/symbol | N/A |
| Illumination module termination wire range | 14 - 18 AWG (x2) |
| Operator function | 2-Position |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Contact block electrical design life (cycles, at max. load) | 1000000 |
| Operator type | Push-Pull Unit |
| Operator special function | Maintained |
| Contact block configuration | 2 NO, standard contact block (800T-XA2) |
| Shock | 25 G (contact fragility)/100 G (no damage) |
| Vibration | 10 G maximum |
| Contact block termination wire range | 14 - 18 AWG (x2) |
| Illumination module termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Humidity | 50 % |
|---|---|
| Operating temperature | -25 °C |
| Hazardous location rating | False |
| Storage temperature | -40 °C |
| Operator construction/material | Metal |
|---|
| Certifications | ABS, CCC, CE, CSA, EAC, GOST, UL |
|---|
