800T-FXJNQ24GA7

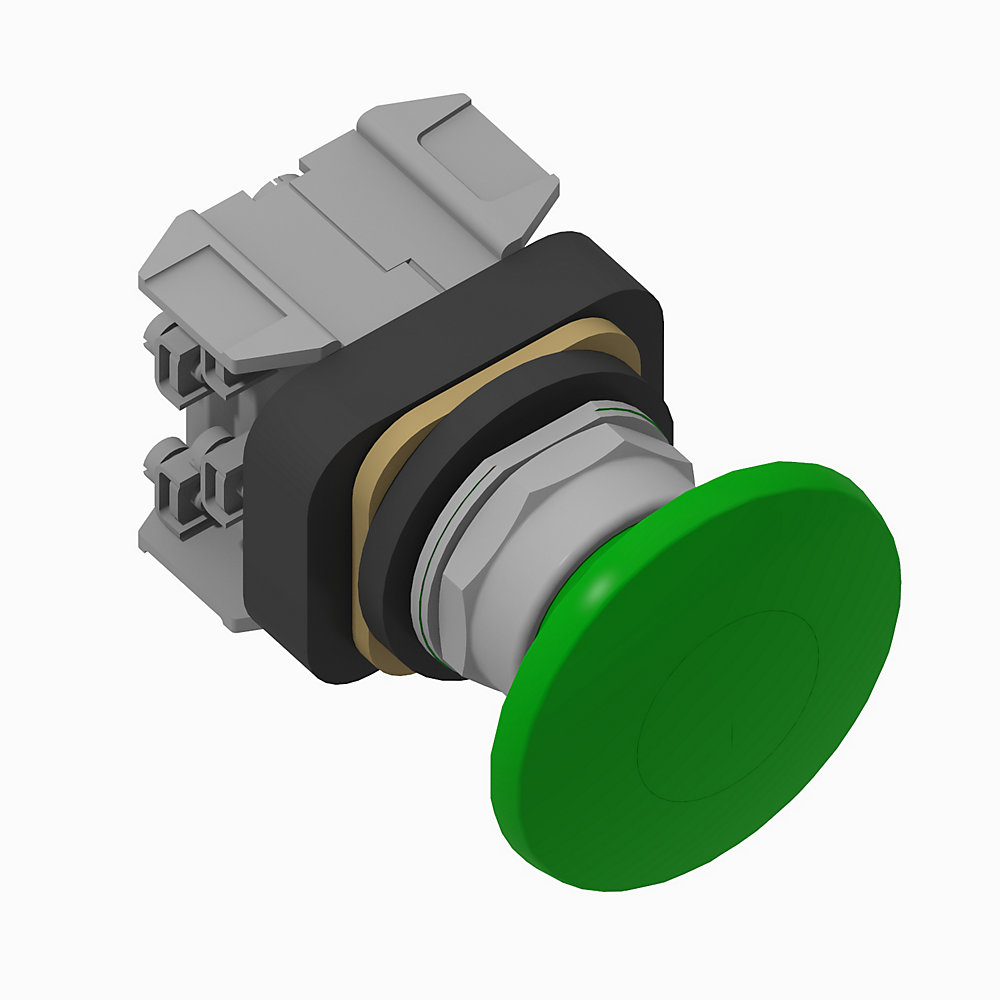

30mm Push-Pull Device 800T PB

Name: 30mm Push-Pull Device 800T PB
Brand: Rockwell Automation
SKU: 800T-FXJNQ24GA7

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 30mm Push-Pull Device 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement

Lifecycle status: Discontinued

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement

Description

30.5mm Type 4/13 3 Pos Push-Pull PB-Illum., OUT/CNTR/IN-Mom/Maint/Mom, Green, Jumbo Mushrm Hd, Incand., 24V AC/DC, 1 NCLB-1 NC

Unique Product Identifier	800T-FXJNQ24GA7
UPC	662073496687
Estimated Lead Time	42 days
Country of Origin	China

Operator Type	Jumbo Mushroom Cap
Type	30mm Push-Pull Device

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Full voltage
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Illumination module input voltage	24V AC/DC
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Jumbo Mushroom Head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Green
Operator cap/button size	60 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator cap text/symbol	N/A
Illumination module termination wire range	14 - 18 AWG (x2)
Operator function	3-Position
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block electrical design life (cycles, at max. load)	1000000
Operator type	Push-Pull Unit
Operator special function	Momentary-out, maintained-center, maintained-in
Contact block configuration	1 NCLB, 1 NC, standard contact block (800T-XA7)
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Metal

Drawings
2D Dimension Drawing (PDF)	Download (PDF)
3D STEP Model (STP)	Download (ZIP)
Product Drawing	Drawing (DWG)

Drawings
2D Dimension Drawing (PDF) Download (PDF)
3D STEP Model (STP) Download (ZIP)
Product Drawing Drawing (DWG)

General	Publication
Push my Buttons Podcast	--
Product Cutsheet	--
Selection Guide	800T-BR012
Repair Parts List	--

Technical Data	Publication
800-td009_-en-p	800-TD009

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
China CCC
CE
CSA Listed
CSA Listed Hazardous
UL Listed
UL Listed Hazardous

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800T-FXJNQ24GA7
UPC	662073496687
Estimated Lead Time	42 days
Country of Origin	China

Technical Specifications

Operator Type	Jumbo Mushroom Cap
Type	30mm Push-Pull Device

Suitable for illumination	True
Operator cap/button shape	Round
Illumination lamp type	Incandescent
Illumination module type	Full voltage
Operator cap/button material	Plastic
Contact block thermal current rating	10 A
Illumination module input voltage	24V AC/DC
Contact block utilization category (AC)	A600, AC-15
Contact block utilization category (DC)	Q600, DC-13
Contact block operational voltage, max	600V AC @ 600V DC
Operator cap type	Jumbo Mushroom Head

Hole diameter	30.5 mm
Type of electric connection	Screw connection
Terminations with finger safe covers	False
Operator mechanical design life (cycles, min.)	250000
Operator cap color	Green
Operator cap/button size	60 mm
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Operator cap text/symbol	N/A
Illumination module termination wire range	14 - 18 AWG (x2)
Operator function	3-Position
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Contact block electrical design life (cycles, at max. load)	1000000
Operator type	Push-Pull Unit
Operator special function	Momentary-out, maintained-center, maintained-in
Contact block configuration	1 NCLB, 1 NC, standard contact block (800T-XA7)
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	10 G maximum
Contact block termination wire range	14 - 18 AWG (x2)
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m

Humidity	50 %
Operating temperature	-25 °C
Hazardous location rating	False
Storage temperature	-40 °C

Operator construction/material	Metal
