800T-16HRH19KL8AX

30mm Selector Switch 800T PB

Name: 30mm Selector Switch 800T PB
Brand: Rockwell Automation
SKU: 800T-16HRH19KL8AX

Serial #:

Lifecycle status: Discontinued

Rockwell Automation announces that as of April 30, 2025, the 30mm Selector Switch 800T PB will be discontinued and no longer available for sale. Customers are encouraged to remove references to the affected product(s)

Discontinued Date: April 30, 2025 Replacement Category: Direct Replacement Replacement Product: See Migration Documentation [https://www.rockwellautomation.com/en-us/support/product/product-compatibility-migration/product-lifecycle-status/migration-documents.html]

Product at a glance

Replacement Available

Lifecycle status: Discontinued

Product at a glance

Replacement Available

Description

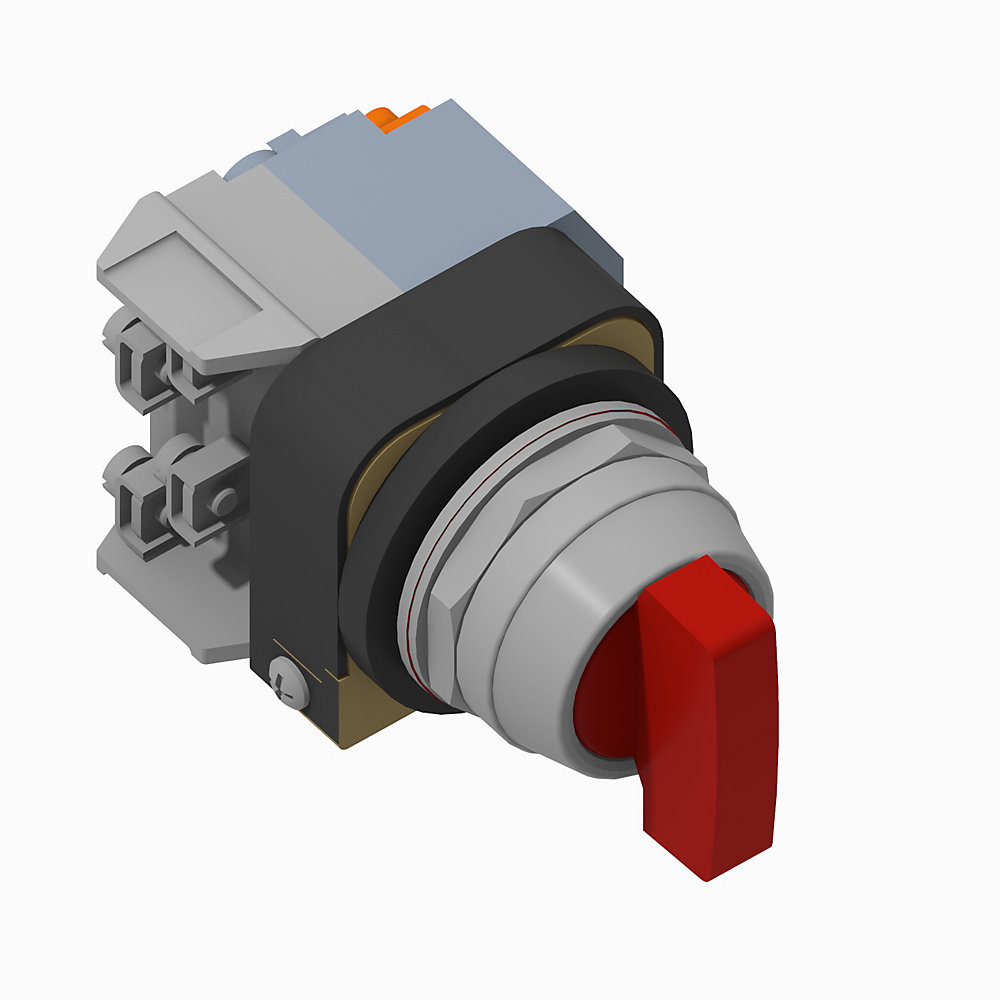

30.5mm Type 4/13 Sel. Switch-Illum., 2 Pos., Transformer, 120V AC 50/60 Hz, Red, Knob Lever Spring Rtn fr/ Right, KL8 Spring Return Cam, 1 NO-1 NC

Unique Product Identifier	800T-16HRH19KL8AX
UPC	611320539882
Estimated Lead Time	97 days
Country of Origin	China

Number of switch positions	2
Hole diameter	30.5 mm
Type of electric connection	Screw connection
Operator mechanical design life (cycles, min.)	200000
Enclosure compatibility (NEMA type)	1, 4, 12, 13
Illumination module termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Illumination module termination wire range	14 - 18 AWG (x2)
Operator type	Selector switch
Contact block termination tightening torque	Custom configuration - consult factory
Contact block electrical design life (cycles, at max. load)	Custom configuration - consult factory
Operator function	Spring return from right
Shock	25 G (contact fragility)/100 G (no damage)
Vibration	Custom configuration - consult factory
Contact block termination wire range	Custom configuration - consult factory

Suitable for illumination	True
Illumination lamp type	LED
Illumination module type	Transformer
Illumination module input voltage	120V AC @ 50/60Hz
Contact block thermal current rating	Custom configuration - consult factory
Contact block utilization category (AC)	Custom configuration - consult factory
Contact block utilization category (DC)	Custom configuration - consult factory
Contact block operational voltage, max	Custom configuration - consult factory
Position 2 contact block	No block this position
Position 1 contact block	1-NO 1-NC standard contacts

Terminations with finger safe covers	False
Operator cap/button material	Plastic
Operator construction/material	Metal
Operator cap type	Knob lever
Operator cam code	KL8
Operator cap color	Red

Operating temperature	-25 °C
Hazardous location rating	Custom configuration - consult factory
Humidity	50 %
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Push my Buttons Podcast	--
Product Cutsheet	--
Repair Parts List	--
Specification	800-TD009
Selection Guide	800T-BR012

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Eurasion Economic Community
China CCC
CE
UL Listed Hazardous
UKCA DOC
