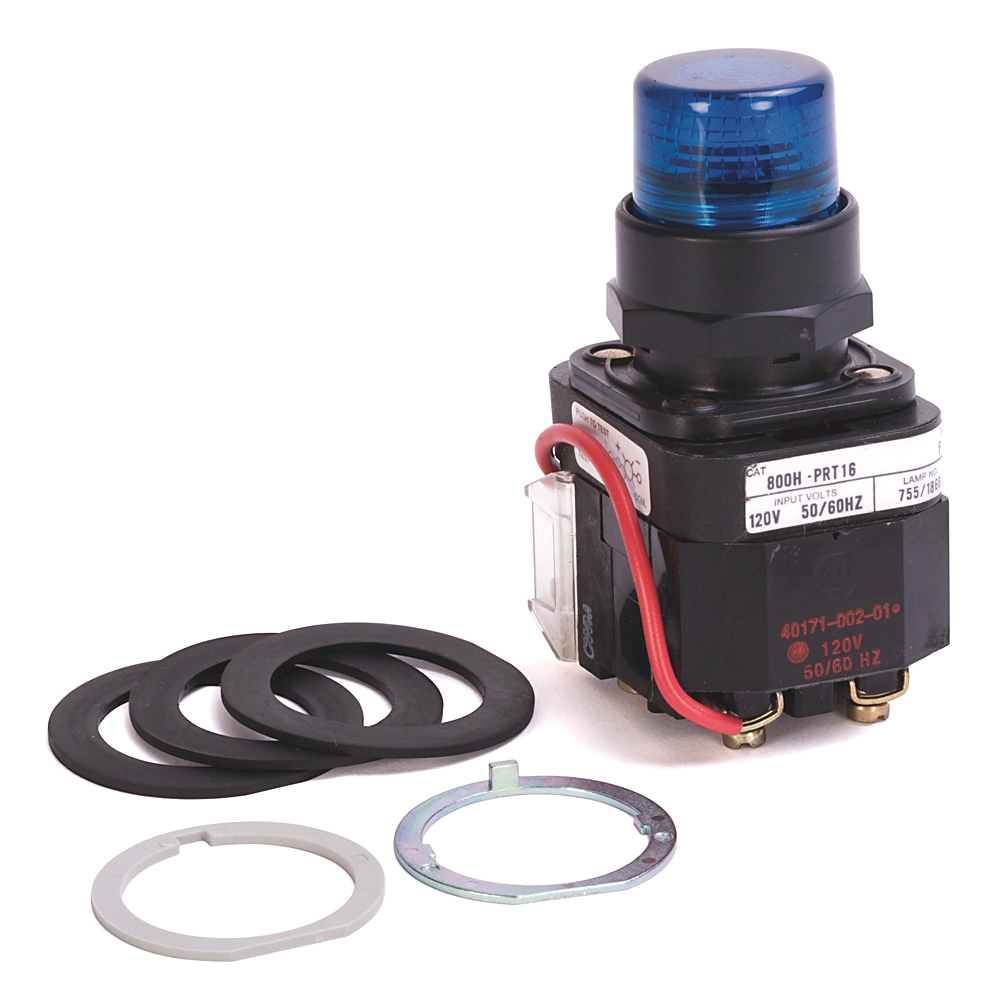

| Lamp Test Type |
Push-to-Test Type
|
|---|---|
| Type |
30mm Pilot Light
|
| Hole diameter |
30.5 mm
|
|---|---|
| Type of electric connection |
Screw connection
|
| Operator mechanical design life (cycles, min.) |
250000
|
| Contact block electrical design life (cycles, at max. load) |
1000000
|
| Enclosure compatibility (NEMA type) |
1, 4, 4X, 12, 13
|
| Operator function |
Push-to-test
|
| Operator type |
Pilot light, with lA test feature
|
| Vibration |
10 G maximum
|
| Shock |
25 G (contact fragility)/100 G (no damage)
|
| Contact block termination wire range |
14 - 18 AWG (x2)
|
| Illumination module termination wire range |
14 - 18 AWG (x2)
|
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m
|
| Illumination module termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m
|
| Terminations with finger safe covers |
False
|
|---|---|
| Operator cap/button shape |
Round
|
| Operator cap type |
Fresnal
|
| Operator cap color |
Red
|
| Operator cap/button material |
Plastic
|
| Contact block configuration |
1-NO 1-NC standard contacts
|
| Contact block thermal current rating |
10 A
|
|---|---|
| Contact block utilization category (AC) |
A600, AC-15
|
| Illumination lamp type |
Incandescent
|
| Contact block operational voltage, max |
600V AC @ 600V DC
|
| Contact block utilization category (DC) |
Q600, DC-13
|
| Operator construction/material |
Plastic
|
| Illumination module type |
Transformer
|
| Illumination module input voltage |
240V AC @ 50/60Hz
|
| Suitable for illumination |
True
|
| Operating temperature |
-25 °C
|
|---|---|
| Hazardous location rating |
False
|
| Humidity |
50 %
|
| Storage temperature |
-40 °C
|
| Certifications |
ABS, CCC, CE, CSA, EAC, GOST, UL
|
|---|
