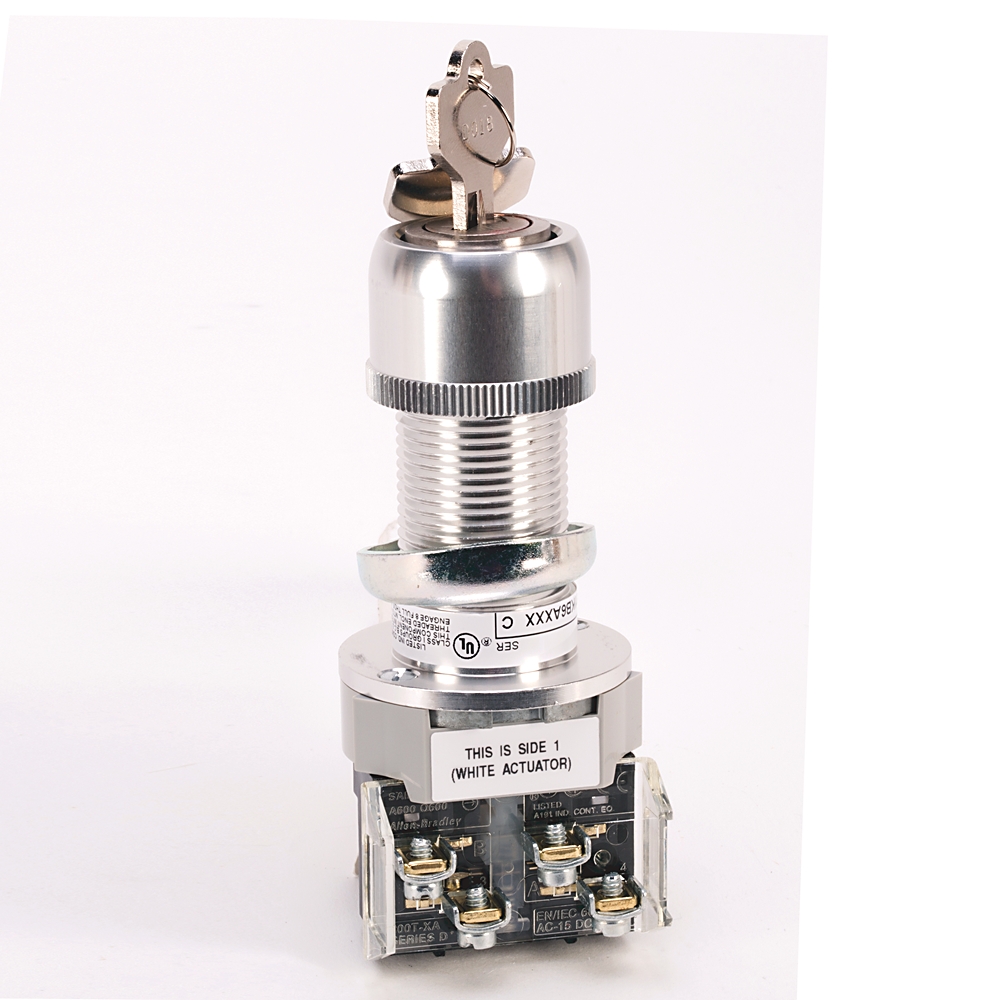

800H-HP3303KB6AAXX
Type 7&9 Selector Switch 800H PB
Product at a glance
Build America, Buy America
Product at a glance
Build America, Buy America
| 2-Position Cam Options |
KB6 Cam,Maint., Lock - Both, Std. Key
|
|---|---|
| 3-Position Cam Options |
Standard KB7 Cam,Not 3-Position Lock
|
| Bull Number Modifier |
No Guards - on Terminals
|
| Key Options |
D020
|
| Position 2 Contact Block |
1-NO 1-NC Standard Contacts
|
| Position 4 Contact Block |
No Block This Position
|
| Number of switch positions |
2
|
|---|---|
| Spring-return |
False
|
| With light source |
False
|
| Switching function latching |
True
|
| Hole diameter |
30.5 mm
|
| Type of electric connection |
Screw connection
|
| Typical operating forces with contact blocks |
800T-XA: 1 lb
|
| Mechanical life operations |
200000 min
|
| Number of positions |
2-position selector switch
|
| Shock |
1/2 cycle sine wave for 11 ms ≥25 G (contact fragility) and no damage at 100 G
|
| Vibration |
10...2000 Hz, 1.52 mm displacement (peak-to-peak) maximum/10 G maximum (except Logic Reed)
|
| Terminal screw torque |
6 in-lb
|
| Typical operating forces operator without contact blocks |
Maintained selector switch: 4 in-lb maximum
|
| Degree of protection |
Type 7 & 9 explosion proof (Type 3 and Type 4 ratings available with accessories)
|
| Number of contacts as normally closed contact |
1
|
|---|---|
| Number of contacts as normally open contact |
1
|
| Suitable for illumination |
False
|
| Operational voltage (Ue), max |
600V AC @ 600V DC
|
| Thermal continuous current (Ith), max |
10A AC @ 2.5A DC
|
| Rated operational current |
69VA @ 28...600V DC
|
| Rated operational current, break |
720VA @ 72...120V AC
|
| Rated operational current, make |
7200VA @ 120...600V AC
|
| Contact operation |
Slow, double make and break
|
| Utilization category |
AC-15 per IEC, DC-13 per IEC
|
| Position 2 contact block |
1 NO, 1 NC, standard contact block (800T-XA)
|
| Position 1 contact block |
1 NO, 1 NC, standard contact block (800T-XA)
|
| Position 3 contact block |
No block this position
|
| Position 4 contact block |
No block this position
|
| Wire gauge |
18 to 14 AWG
|
| Dielectric strength |
2200V @ 1min, 1300V @ 1min (Logic Reed)
|
| Electrical life cycle |
1000000 cycles at maximum rated load, 200000 cycles at maximum rated load (Logic Reed)
|
| Material front ring |
Plastic
|
|---|---|
| Type of control element |
Key
|
| 2-position cam options |
KB6 cam
|
| Key options |
D020
|
| Finger-safe guards |
No guards on terminals
|
| 2-position lock/function |
Maintained, lock in both positions, standard key
|
| With front ring |
True
|
| Operating temperature |
-20 °C
|
|---|---|
| Humidity |
50% @ 104°F (40 °C)
|
| Storage temperature |
-40 °C
|
| Type | Resource | Publication |
|---|---|---|
| General | Product Cutsheet | -- |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
- American Bureau of Shippin
This product was certified with the above certifications as of 2025-12-09. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
