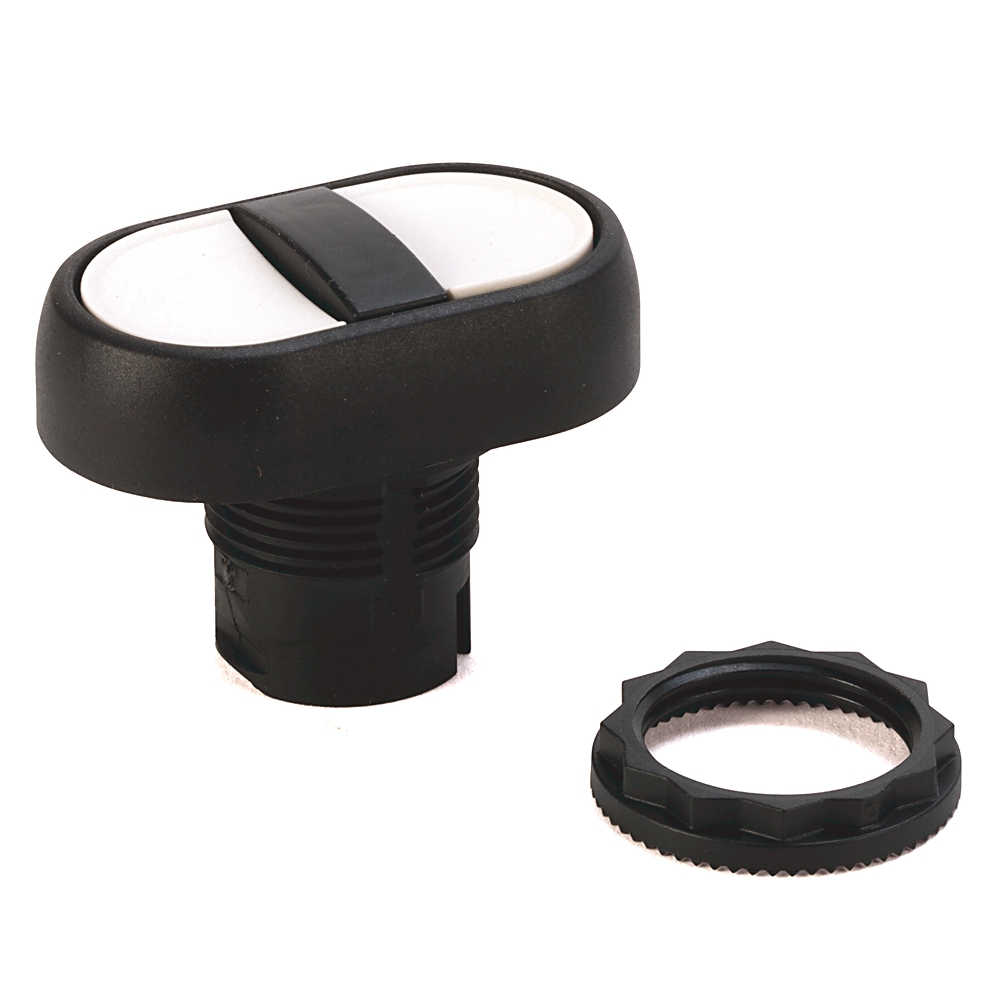

800FP-U2FFFEPX11

800F Two Pos.Multifunct, Plstc, Non-Illu

Name: 800F Two Pos.Multifunct,Plstc,Non-Illu
Brand: Rockwell Automation
SKU: 800FP-U2FFFEPX11

Serial #:

Lifecycle status: Active

Description

800F 2 Pos. Momentary Multifunction- Rd. Plas. (IP66, 4/4X, IP65), Plastic Latch Mount, 1 N.O. Contact(s), 1 N.C. Contact(s), Standard Standard Pack (Qty. 1)

Unique Product Identifier	800FP-U2FFFEPX11
UPC	612598536399
Estimated Lead Time	51 days
Standard Warranty Duration	1 year See details
Country of Origin	China

The information provided by Rockwell Automation on www.rockwellautomation.com (the “Site”) is for demonstration purposes only and may be incomplete or inaccurate. All information is provided “as is”, and Rockwell Automation makes no representations or warranties of any kind, express or implied, regarding the accuracy, adequacy, validity, reliability, or completeness of any information on the Site. Use of this information is at your own risk.

Type	22mm Multi-Operator

Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Suitable for illumination	False
Illumination lamp type	No power module
Contact block type	Standard
Illumination module type	No power module
Contact block thermal current rating	10 A
Illumination module input voltage	No power module
Contact block utilization category (AC)	A600, AC 15 - screw termination
Contact block utilization category (DC)	Q600, DC-13 - screw termination
Contact block operational voltage, max	600V (A600, Q600) - screw termination

Hole diameter	22.5 mm
Latch material	Plastic
Operator mechanical design life (cycles, min.)	1000000
Contact block durability	1.0E7
Contact block mounting style	Latch
Operator cap text/symbol	Avaliable
Operator function	2 position multi-operator
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Enclosure compatibility	IP69K, IP66, Type 4/4X (Round plastic operator)
Contact block configuration	1 NO, 1 NC
Shock	100 G
Vibration	10 G
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)

Operator cap A type	Flush
Operator cap C type	Flush
Operator construction/material	Plastic
Operator cap A color	Red STOP symbol
Operator cap C color	Green START symbol
Termination style	Screw
Operator cap B color	Multi-function, 2-position, illuminated or non-illuminated

Operating temperature	-25 °C
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Storage temperature	-40 °C

Drawings
3D STEP Model (STP)	Download (ZIP)

Drawings
3D STEP Model (STP) Download (ZIP)

General	Publication
Push my Buttons Podcast	--
Technical Document	800-TD008
Product Cutsheet	--

User Manual	Publication
800-um001_-en-p	800-UM001

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	800FP-U2FFFEPX11
UPC	612598536399
Estimated Lead Time	51 days
Standard Warranty Duration	1 year See details
Country of Origin	China

Electrical & Connectivity

Type	22mm Multi-Operator

Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Suitable for illumination	False
Illumination lamp type	No power module
Contact block type	Standard
Illumination module type	No power module
Contact block thermal current rating	10 A
Illumination module input voltage	No power module
Contact block utilization category (AC)	A600, AC 15 - screw termination
Contact block utilization category (DC)	Q600, DC-13 - screw termination
Contact block operational voltage, max	600V (A600, Q600) - screw termination

Physical Characteristics

Hole diameter	22.5 mm
Latch material	Plastic
Operator mechanical design life (cycles, min.)	1000000
Contact block durability	1.0E7
Contact block mounting style	Latch
Operator cap text/symbol	Avaliable
Operator function	2 position multi-operator
Contact block termination tightening torque	6 - 8 in-lb / 0.7 - 0.9 N-m
Operator type	Push button
Enclosure compatibility	IP69K, IP66, Type 4/4X (Round plastic operator)
Contact block configuration	1 NO, 1 NC
Shock	100 G
Vibration	10 G
Contact block termination wire range	#18...12 AWG (0.75...2.5 mm²)

Operator cap A type	Flush
Operator cap C type	Flush
Operator construction/material	Plastic
Operator cap A color	Red STOP symbol
Operator cap C color	Green START symbol
Termination style	Screw
Operator cap B color	Multi-function, 2-position, illuminated or non-illuminated

Compliance & Environment

Operating temperature	-25 °C
Humidity	≤95% RH from 25...60 °C (77...140 °F)
Storage temperature	-40 °C
