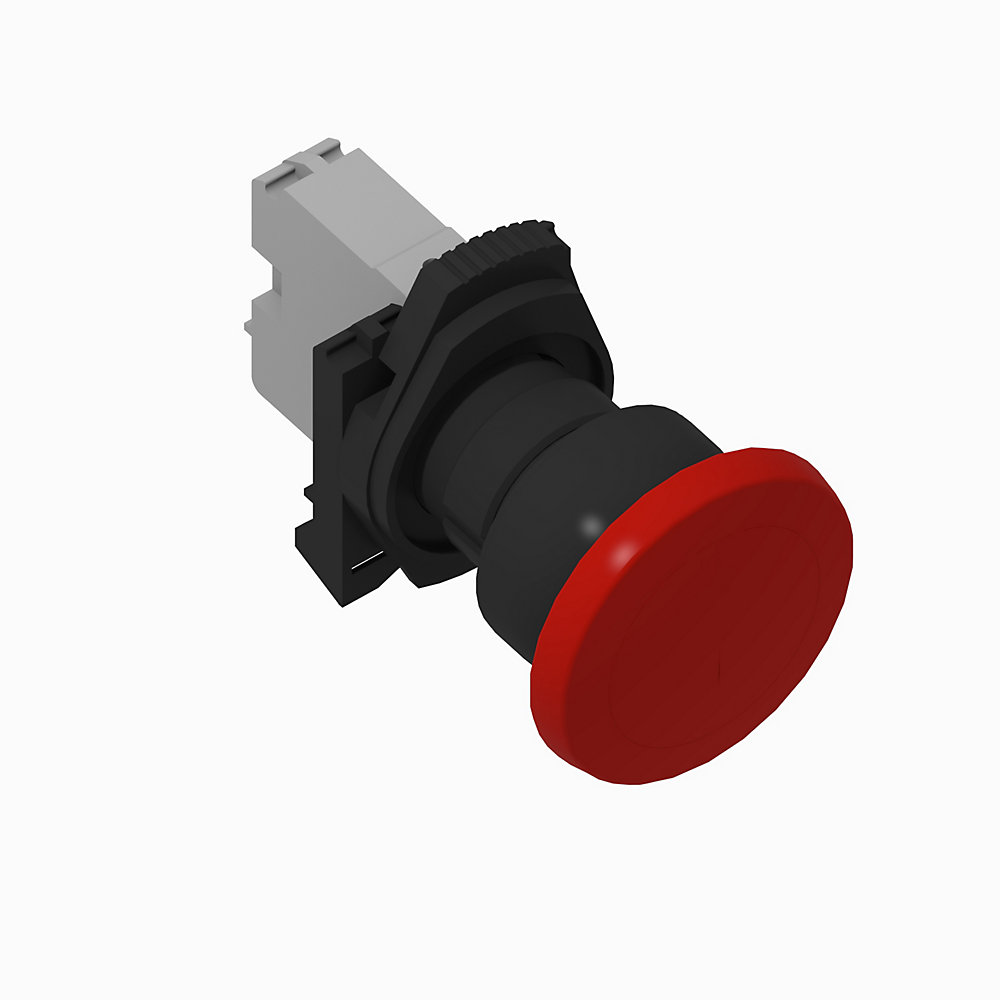

22mm Momentary Push Button
|
|---|
| Number of contacts as normally closed contact |
1
|
|---|---|
| Suitable for illumination |
False
|
| Operator cap/button shape |
Round
|
| Illumination lamp type |
No power module
|
| Contact block type |
NC late break
|
| Illumination module type |
No power module
|
| Operator cap/button material |
Plastic
|
| Contact block thermal current rating |
10 A
|
| Illumination module input voltage |
No power module
|
| Contact block utilization category (AC) |
A600, AC 15 - screw termination
|
| Contact block utilization category (DC) |
Q600, DC-13 - screw termination
|
| Contact block operational voltage, max |
600V (A600, Q600) - screw termination
|
| Operator cap type |
Momentary mushroom, 40mm
|
| Spring-return |
True
|
|---|---|
| Hole diameter |
22.5 mm
|
| Latch material |
Plastic
|
| Operator mechanical design life (cycles, min.) |
1.0E7
|
| Contact block durability |
1.0E7
|
| Contact block mounting style |
Latch
|
| Operator function |
22 mm momentary push button
|
| Contact block termination tightening torque |
6 - 8 in-lb / 0.7 - 0.9 N-m
|
| Operator type |
Push button
|
| Enclosure compatibility |
IP69K, IP65, Type 4/4X/13 (Round plastic operator)
|
| Contact block configuration |
1 NC
|
| Shock |
100 G
|
| Vibration |
10 G
|
| Contact block termination wire range |
#18...12 AWG (0.75...2.5 mm²)
|
| Switching function latching |
False
|
| Operating temperature |
-25 °C
|
|---|---|
| Humidity |
≤95% RH from 25...60 °C (77...140 °F)
|
| Storage temperature |
-40 °C
|
| Operator construction/material |
Plastic
|
|---|---|
| Termination style |
Screw contact block
|
| Operator cap color (lens) |
Red
|
| Certifications |
UL,UR, CSA, CCC, CE
|
|---|
