| Product Type |

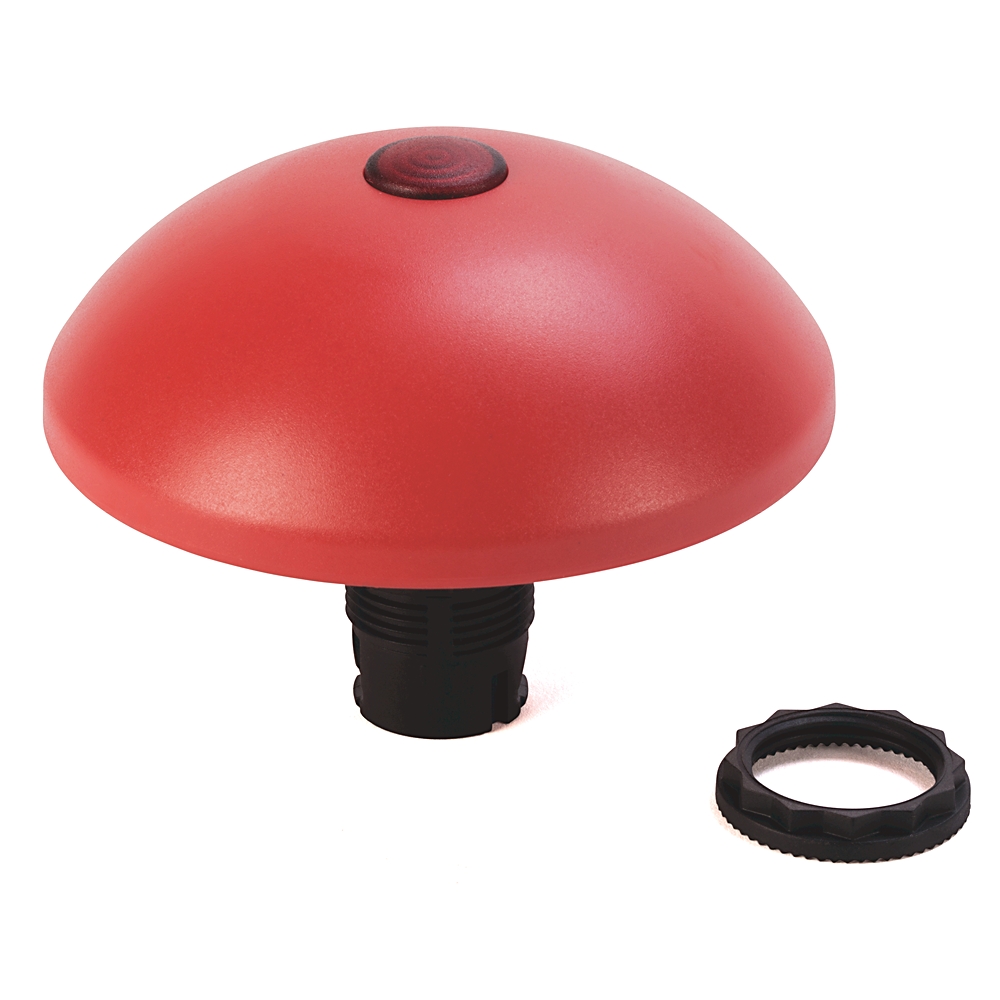

22mm Push Pull Operator
|
|---|
| Diameter cap |
90 mm
|
|---|---|
| Unlocking method |
Pull-release
|
| Operator type |
90 mm illuminated push-pull
|
| Operator function |
22 mm push pull operator
|
| Enclosure compatibility |
IP69K, IP66, Type 4/4X/13 (Round plastic operator)
|
| Spring-return |
False
|
| Switching function latching |
True
|
| Hole diameter |
22.5 mm
|
| Vibration |
10 g
|
| Shock |
100 g
|
| Operator mechanical design life (cycles, min.) |
300000
|
| Operator cap type |
Mushroom head
|
| Contact block durability |
10000000 cycles
|
| Colour button |
Red
|
|---|---|
| Operator construction/material |
Plastic
|
| Operator cap color |
Red
|
| Operator cap/button size |
90 mm illuminated push-pull
|
| With front ring |
True
|
| Type of button |
High
|
| Operator cap/button material |
Plastic
|
| Suitable for illumination |
True
|
|---|---|
| Contact block thermal current rating |
10 A
|
| Operating temperature |
-25 °C
|
|---|---|
| Storage temperature |
-40 °C
|
| Humidity |
≤95% RH from 25...60 °C (77...140 °F)
|
| Certifications |
UL,UR, CSA, CCC, CE
|
|---|
