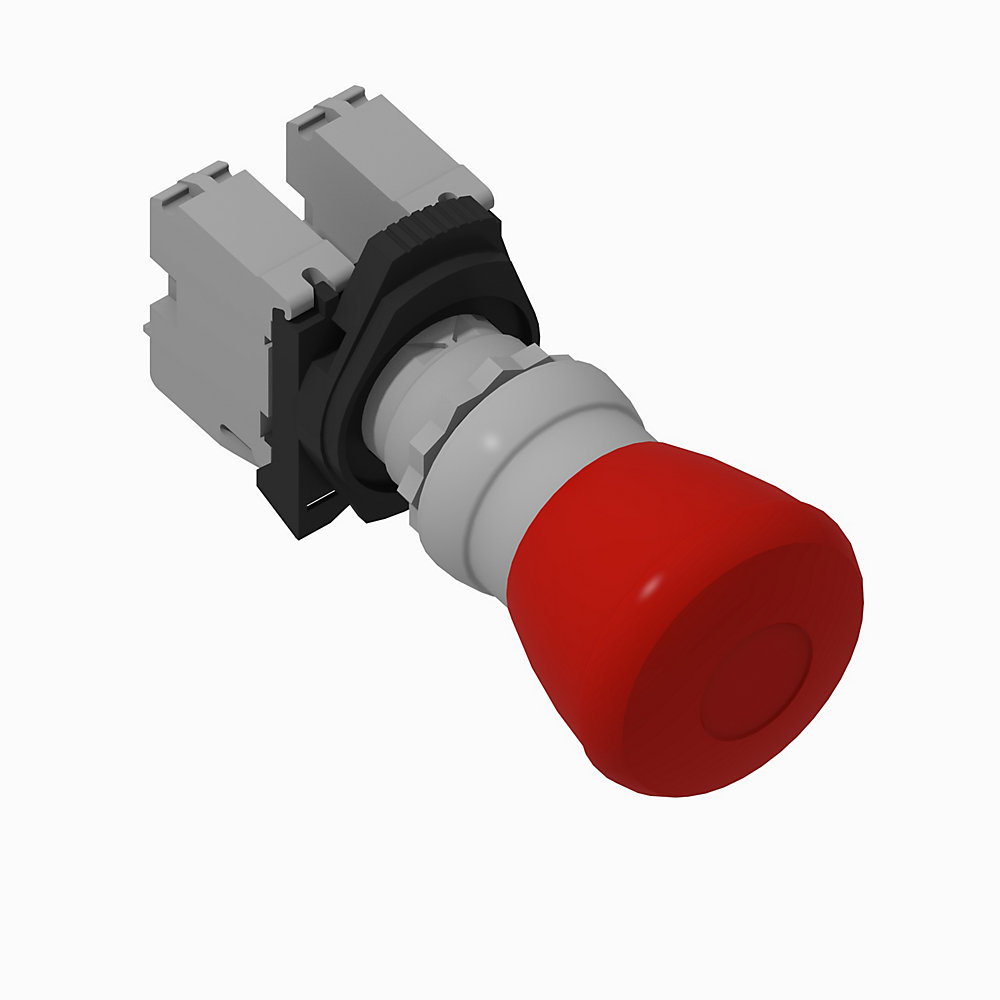

| Product Type | 22mm Push Pull Operator |
|---|
| Number of contacts as normally closed contact | 2 |
|---|---|
| With lighting | False |
| Illumination lamp type | No power module |
| Illumination module type | No power module |
| Contact block thermal current rating | 10 A |
| Contact block utilization category (AC) | A600, AC 15 - screw termination |
| Contact block utilization category (DC) | Q600, DC-13 - screw termination |
| Illumination module input voltage | No power module |
| Contact block operational voltage, max | 600V (A600, Q600) - screw termination |
| Diameter cap | 40 mm |
|---|---|
| Hole diameter | 22.5 mm |
| Unlocking method | Pull-release |
| Operator mechanical design life (cycles, min.) | 300000 |
| Contact block type | Standard |
| Operator cap type | Mushroom head |
| Operator construction/material | Metal |
| Operator type | 40 mm push-pull |
| Operator function | 22 mm push pull operator |
| Vibration | 10 G |
| Contact block configuration | 2 NC |
| Contact block termination wire range | #18...12 AWG (0.75...2.5 mm²) |
| Contact block termination tightening torque | 6 - 8 in-lb / 0.7 - 0.9 N-m |
| Shock | 100 G |
| Enclosure compatibility | IP66, Type 4/13 (round metal operator) |
| Contact block mounting style | Latch |
| Contact block durability | 10000000 cycles |
| Connection type auxiliary circuit | Screw connection |
|---|---|
| Operator cap/button material | Metal |
| Latch material | Plastic |
| Operator cap color | Red |
| Termination style | Screw contact block |
| Operator cap/button size | 40 mm push-pull |
| Mounting method | Surface mounting |
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Certifications | UL,UR, CSA, CCC, CE |
|---|
