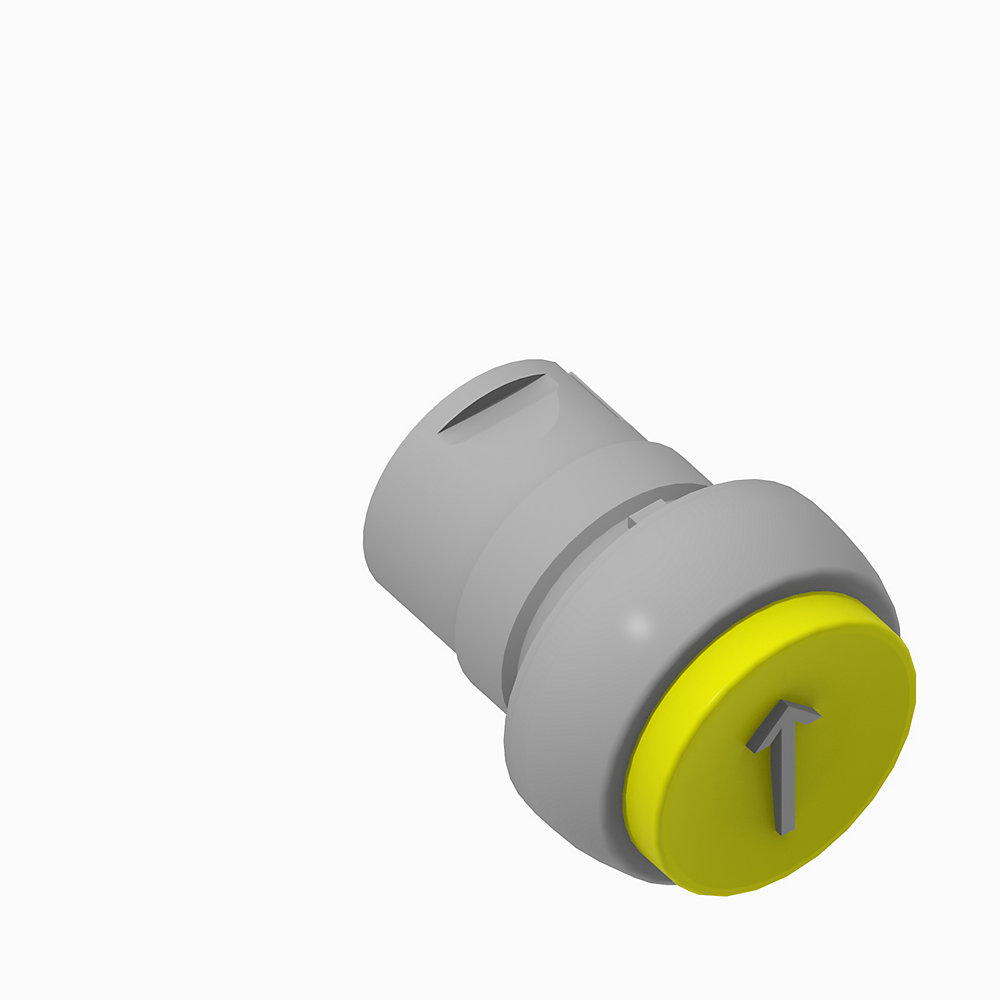

| Product Type | 22mm Momentary Push Button |
|---|
| Suitable for illumination | False |
|---|
| Operator construction/material | Metal |
|---|---|
| Operator cap color (lens) | Yellow |
| Operator cap type | Extended push-button |
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
|---|---|
| Operator cap text/symbol | Arrow |
| Packaging | Standard pack (1 per package) |
| Operator function | 22 mm momentary push button |
| Enclosure compatibility | IP66, Type 4/13 (Round metal operator) |
| Hole diameter | 22.5 mm |
| Vibration | 10 g |
| Shock | 100 g |
| Operator type | Push button |
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Certifications | UL,UR, CSA, CCC, CE |
|---|
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
| Type | Resource | Publication |
|---|---|---|
| General | Push my Buttons Podcast | -- |
| General | Product Cutsheet | -- |
| General | Repair Parts List | -- |
| User Manual | 800-um001_-en-p | 800-UM001 |
Looking for more documentation?
Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.
Search the Literature Library
Looking for more Technotes?
Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.
Search Knowledgebase
Technical Specifications
| Product Type | 22mm Momentary Push Button |
|---|
| Suitable for illumination | False |
|---|
| Operator construction/material | Metal |
|---|---|
| Operator cap color (lens) | Yellow |
| Operator cap type | Extended push-button |
| Operator cap/button shape | Round |
| Operator cap/button material | Plastic |
| Operator mechanical design life (cycles, min.) | 1.0E7 |
|---|---|
| Operator cap text/symbol | Arrow |
| Packaging | Standard pack (1 per package) |
| Operator function | 22 mm momentary push button |
| Enclosure compatibility | IP66, Type 4/13 (Round metal operator) |
| Hole diameter | 22.5 mm |
| Vibration | 10 g |
| Shock | 100 g |
| Operator type | Push button |
| Operating temperature | -25 °C |
|---|---|
| Storage temperature | -40 °C |
| Humidity | ≤95% RH from 25...60 °C (77...140 °F) |
| Certifications | UL,UR, CSA, CCC, CE |
|---|
Drawings
| Drawings | |
|---|---|
| 3D STEP Model (STP) | Download (ZIP) |
| Drawings |
|---|
| 3D STEP Model (STP) Download (ZIP) |
Sign in to your Rockwell Automation account to view and download technical drawings.
Sign In
Documents
|
Push my Buttons Podcast
General
-- |
|
Product Cutsheet
General
-- |
|
Repair Parts List
General
-- |
|
800-um001_-en-p
User Manual
800-UM001 |
| Type | Resource | Publication |
|---|---|---|
| General | Push my Buttons Podcast | -- |
| General | Product Cutsheet | -- |
| General | Repair Parts List | -- |
| User Manual | 800-um001_-en-p | 800-UM001 |
