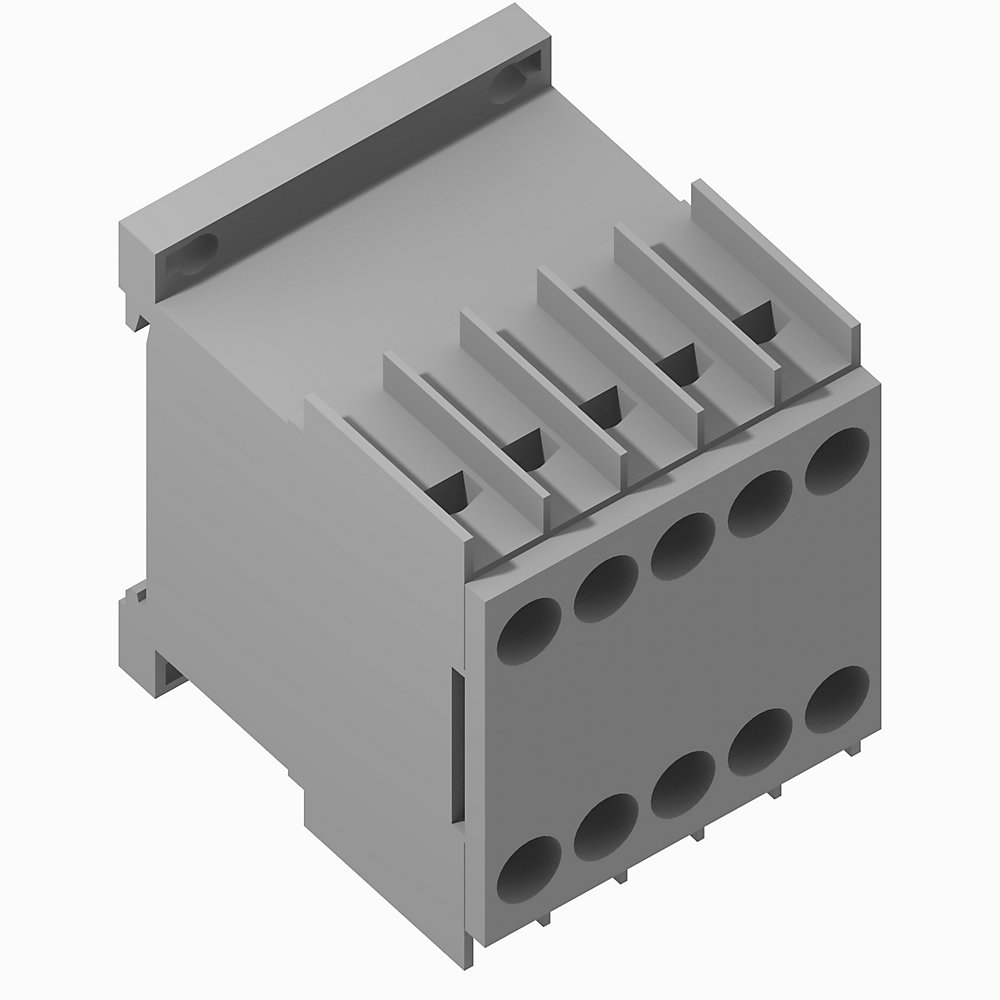

700-kr22z-dj

IEC Miniature Control Relay

Name: IEC Miniature Control Relay
Brand: Rockwell Automation
SKU: 700-kr22z-dj

Serial #:

Lifecycle status: Active

Description

700-K MCS Mini Contactors, Spring Clamp Terminals, System Control Voltage: 24 (17...30)V DC Diode, 2 N.O. / 2 N.C. Auxiliary Contacts

Unique Product Identifier	700-kr22z-dj
UPC	662074520138
Estimated Lead Time	5 days
Country of Origin	Switzerland

Special Features	Silver Bifurcated Contacts
Sub Brand	IEC

Voltage type for actuating	DC
Interface	False
Rated control supply voltage at AC 50 Hz	0 V
Rated control supply voltage at AC 60 Hz	0 V
Mounting method	DIN-rail/screw
Switching capacity	Q600 @ DC per UL/CSA
Package quantity	Single pack (quantity of 1)
Rated thermal current (Ith)	Ambient temperature 60°C: 6A @ 24...240V, AC-12
Electrical life cycle	700000 @ 240V/2 A, AC-15
With LED indication	False

Operating time, closing delay	18 ms
Weight	0.2 kg
Connection type	Spring clA connection
Operating time, opening delay	6 to 12 ms
Wire size	Solid or coarse stranded for 2 conductors: 0.75...2.5 mm²
Suitable for manual operation	False

Drawings
Product Drawing	Drawing (DXF)

Drawings
Product Drawing Drawing (DXF)

General	Publication
Product Cutsheet	--

Technical Data	Publication
700-td552_-en-p	700-TD552

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

CE
SUVA LVD Type Approval
China CCC
UL Listed
Eurasion Economic Community

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.

Items Per Page:

Technotes

Looking for more Technotes?

Find questions and answers from Rockwell Automation technical experts for this product in our Knowledgebase.

Search Knowledgebase

Overview

Unique Product Identifier	700-kr22z-dj
UPC	662074520138
Estimated Lead Time	5 days
Country of Origin	Switzerland

Technical Specifications

Special Features	Silver Bifurcated Contacts
Sub Brand	IEC

Voltage type for actuating	DC
Interface	False
Rated control supply voltage at AC 50 Hz	0 V
Rated control supply voltage at AC 60 Hz	0 V
Mounting method	DIN-rail/screw
Switching capacity	Q600 @ DC per UL/CSA
Package quantity	Single pack (quantity of 1)
Rated thermal current (Ith)	Ambient temperature 60°C: 6A @ 24...240V, AC-12
Electrical life cycle	700000 @ 240V/2 A, AC-15
With LED indication	False

Operating time, closing delay	18 ms
Weight	0.2 kg
Connection type	Spring clA connection
Operating time, opening delay	6 to 12 ms
Wire size	Solid or coarse stranded for 2 conductors: 0.75...2.5 mm²
Suitable for manual operation	False

Drawings

Drawings
Product Drawing	Drawing (DXF)

Drawings
Product Drawing Drawing (DXF)

Documents

Product Cutsheet General
--

700-td552_-en-p Technical Data
700-TD552

General	Publication
Product Cutsheet	--
Technical Data	Publication
700-td552_-en-p	700-TD552

Looking for more documentation?

Find curated technical documentation for this product in the Technical Documentation Center, or search our full Literature Library.

Search the Literature Library

Certifications

CE
SUVA LVD Type Approval
China CCC
UL Listed
Eurasion Economic Community
